ESW226M100AG3AA
  • Share:

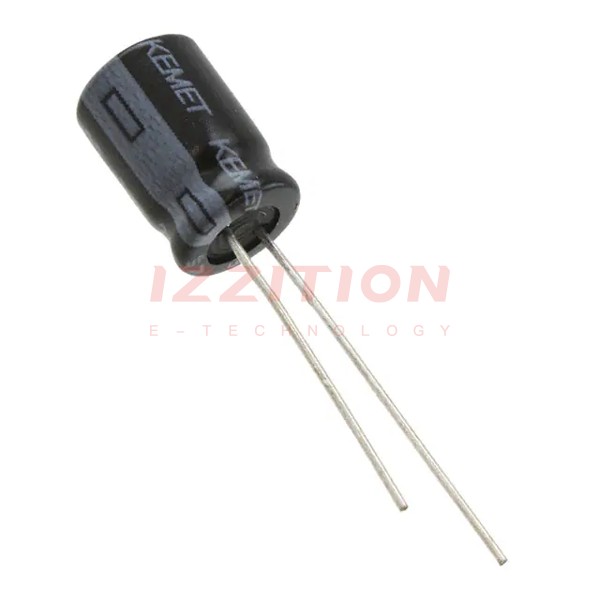

KEMET ESW226M100AG3AA

Manufacturer No:
ESW226M100AG3AA
Manufacturer:
KEMET
Package:
Bulk
Datasheet:
ESW226M100AG3AA Datasheet
ECAD Model:
-
Description:
CAP ALUM 22UF 20% 100V RADIAL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Capacitance:22 µF
Tolerance:±20%
Voltage - Rated:100 V
ESR (Equivalent Series Resistance):680mOhm @ 100kHz
Lifetime @ Temp.:4000 Hrs @ 105°C
Operating Temperature:-40°C ~ 105°C
Polarization:Polar
Ratings:-
Applications:General Purpose
Ripple Current @ Low Frequency:92 mA @ 120 Hz
Ripple Current @ High Frequency:230 mA @ 100 kHz
Impedance:680 mOhms
Lead Spacing:0.138" (3.50mm)
Size / Dimension:0.315" Dia (8.00mm)
Height - Seated (Max):0.492" (12.50mm)
Surface Mount Land Size:-
Mounting Type:Through Hole
Package / Case:Radial, Can
0 Remaining View Similar

In Stock

$0.40
1,598

Please send RFQ , we will respond immediately.
