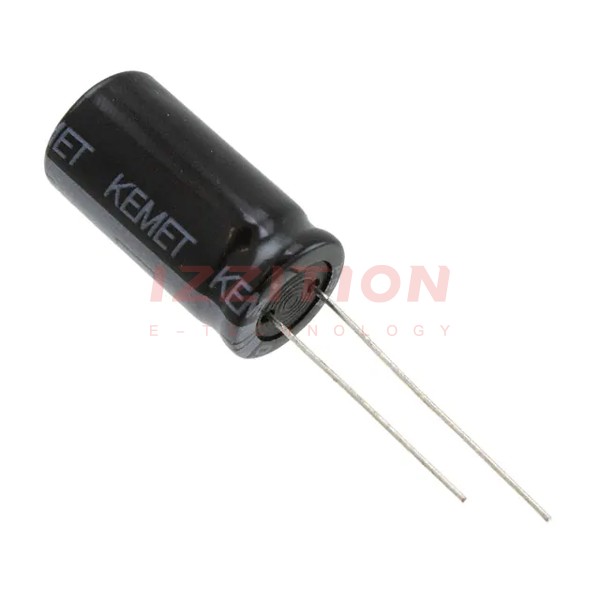

| Part Number | EST108M035AL4AA | ESY108M035AL4AA |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 1000 µF | 1000 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 35 V | 35 V |
| ESR (Equivalent Series Resistance) | 34mOhm @ 100kHz | 18mOhm @ 100kHz |
| Lifetime @ Temp. | 10000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 2.007 A @ 120 Hz | 2.0775 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.23 A @ 100 kHz | 2.77 A @ 100 kHz |
| Impedance | - | 18 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.512" Dia (13.00mm) | 0.512" Dia (13.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) | 1.063" (27.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
