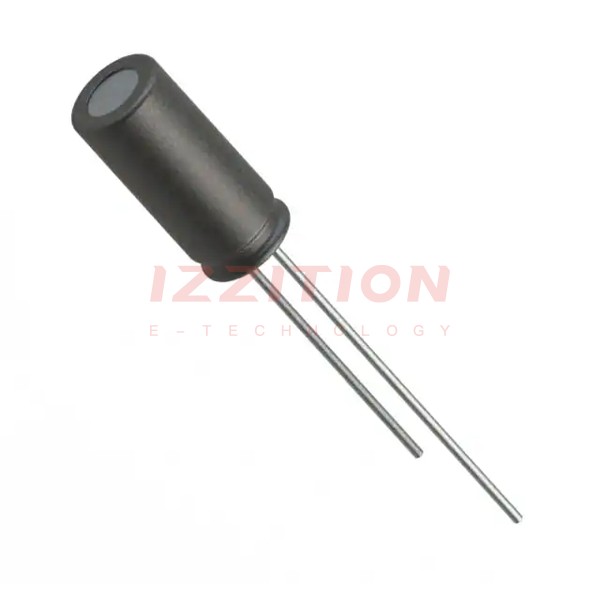

| Part Number | ESH476M016AC3AA | ESH476M010AC3AA |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 47 µF | 47 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 16 V | 10 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 85 mA @ 120 Hz | 75 mA @ 120 Hz |
| Ripple Current @ High Frequency | 170 mA @ 10 kHz | 150 mA @ 10 kHz |
| Impedance | - | - |
| Lead Spacing | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) | 0.492" (12.50mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
