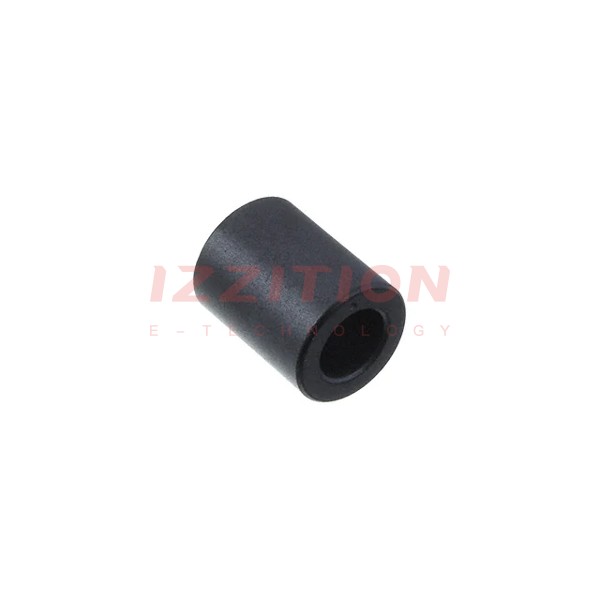

| Part Number | ESD-R-12C | ESD-R-12E | ESD-R-16C | ESD-R-12CM | ESD-R-12F | ESD-R-15C | ESD-R-12D | ESD-R-14C | ESD-R-12S |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Round | Round | Round | Round | Round | Round | Round | Round | Round |
| Design | Solid | Solid | Solid | Solid | Solid | Solid | Solid | Solid | Solid |
| Impedance @ Frequency | - | - | - | - | - | - | - | - | - |
| Material | NIZn | NIZn | NIZn | NIZn | NIZn | NIZn | NIZn | NIZn | NIZn |
| Inner Dimension | 0.287" Dia (7.30mm) | 0.287" Dia (7.30mm) | 0.354" Dia (9.00mm) | 0.276" Dia (7.00mm) | 0.335" Dia (8.50mm) | 0.413" Dia (10.50mm) | 0.236" Dia (6.00mm) | 0.276" Dia (7.00mm) | 0.276" Dia (7.00mm) |
| Outer Dimension | 0.464" Dia (11.80mm) | 0.464" Dia (11.80mm) | 0.630" Dia (16.00mm) | 0.472" Dia (12.00mm) | 0.472" Dia (12.00mm) | 0.598" Dia (15.20mm) | 0.507" Dia (12.90mm) | 0.551" Dia (14.00mm) | 0.472" Dia (12.00mm) |
| Ratings | - | - | - | - | - | - | - | - | - |
| Mounting Type | Free Hanging | Free Hanging | Free Hanging | Free Hanging | Free Hanging | Free Hanging | Free Hanging | Free Hanging | Free Hanging |
| Length | 0.591" (15.00mm) | 0.315" (8.00mm) | 0.669" (17.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.492" (12.50mm) | 0.252" (6.40mm) | 0.118" (3.00mm) | 0.216" (5.50mm) |
