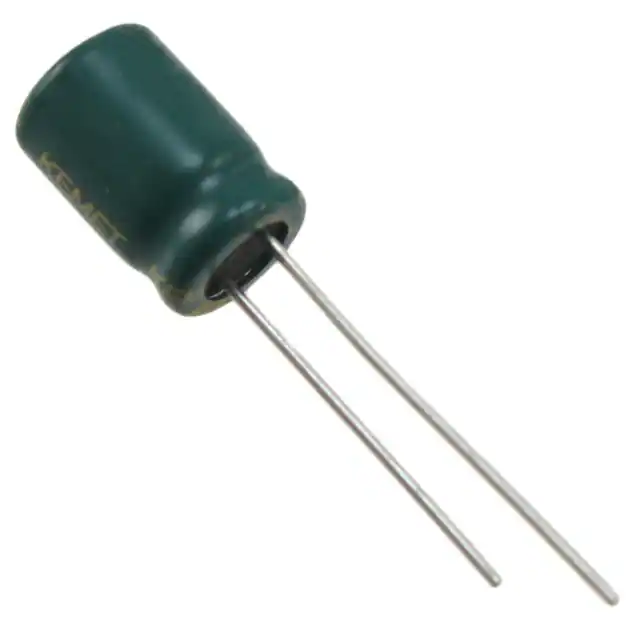

KEMET-ESC337M025AG6AA - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	330 µF
Tolerance:	±20%
Voltage - Rated:	25 V
ESR (Equivalent Series Resistance):	69mOhm @ 100kHz
Lifetime @ Temp.:	2000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	560 mA @ 120 Hz
Ripple Current @ High Frequency:	800 mA @ 100 kHz
Impedance:	69 mOhms
Lead Spacing:	0.138" (3.50mm)
Size / Dimension:	0.315" Dia (8.00mm)
Height - Seated (Max):	0.866" (22.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

KEMET ESC337M025AG6AA
