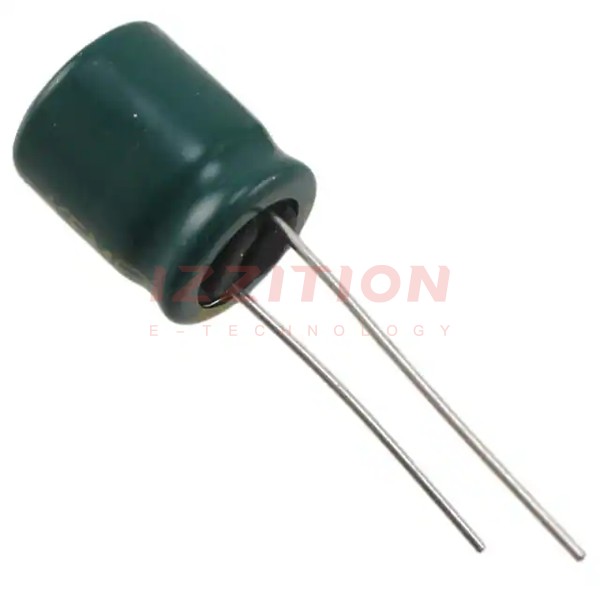

| Part Number | ESC108M016AH4AA | ESH108M016AH4AA |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 1000 µF | 1000 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 16 V | 16 V |
| ESR (Equivalent Series Resistance) | 39mOhm @ 100kHz | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 1.125 A @ 120 Hz | 700 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.25 A @ 100 kHz | 805 mA @ 10 kHz |
| Impedance | 39 mOhms | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.827" (21.00mm) | 0.827" (21.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
