Please send RFQ , we will respond immediately.

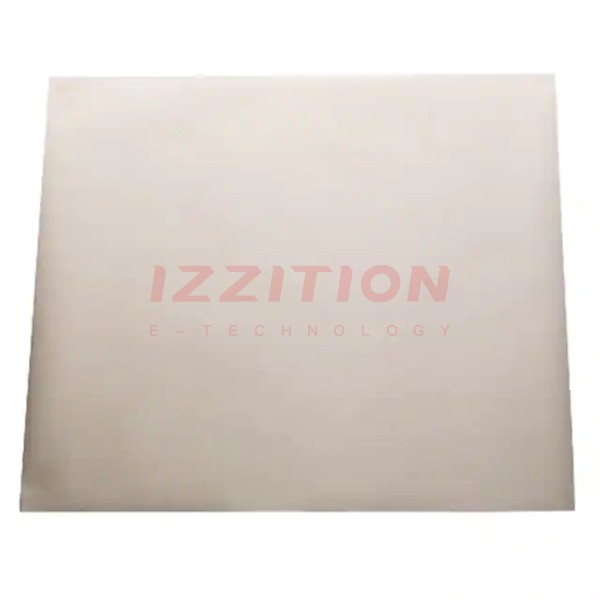

| Part Number | EFR(01)-240X240T0800 | EFW(01)-240X240T0800 | EFR(03)-240X240T0800 | EFX(01)-240X240T0800 | EFS(01)-240X240T0800 | EFR(02)-240X240T0800 | EFA(01)-240X240T0800 | EFF(01)-240X240T0800 | EFG(01)-240X240T0800 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Not For New Designs | Active | Not For New Designs | Active | Active | Obsolete | Active | Not For New Designs | Not For New Designs |
| Type | Absorbing Sheet | Absorbing Sheet | Absorbing Sheet | Absorbing Sheet | - | Absorbing Sheet | Absorbing Sheet | Absorbing Sheet | Absorbing Sheet |
| Shape | Square | Square | Square | Square | - | Square | Square | Square | Square |
| Length | 9.449" (240.00mm) | 9.449" (240.00mm) | 9.449" (240.00mm) | 9.449" (240.00mm) | - | 9.449" (240.00mm) | 9.449" (240.00mm) | 9.449" (240.00mm) | 9.449" (240.00mm) |
| Width | 9.449" (240.00mm) | 9.449" (240.00mm) | 9.449" (240.00mm) | 9.449" (240.00mm) | - | 9.449" (240.00mm) | 9.449" (240.00mm) | 9.449" (240.00mm) | 9.449" (240.00mm) |
| Thickness - Overall | 0.005" (0.13mm) | 0.005" (0.13mm) | 0.013" (0.33mm) | 0.005" (0.13mm) | - | 0.009" (0.23mm) | 0.005" (0.13mm) | 0.005" (0.13mm) | 0.005" (0.13mm) |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | - | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Adhesive | Non-Conductive, Single Sided | Non-Conductive, Double Sided | Non-Conductive, Single Sided | Non-Conductive, Single Sided | - | Non-Conductive, Single Sided | Non-Conductive, Double Sided | Non-Conductive, Single Sided | Non-Conductive, Single Sided |
| Material | Polymer Resin, Magnetic Powder | Polymer, Magnetic Powder | Polymer Resin, Magnetic Powder | Polymer Resin, Magnetic Powder | - | Polymer Resin, Magnetic Powder | Polymer Resin, Magnetic Powder | Polymer Resin, Magnetic Powder | Polymer Resin, Magnetic Powder |
