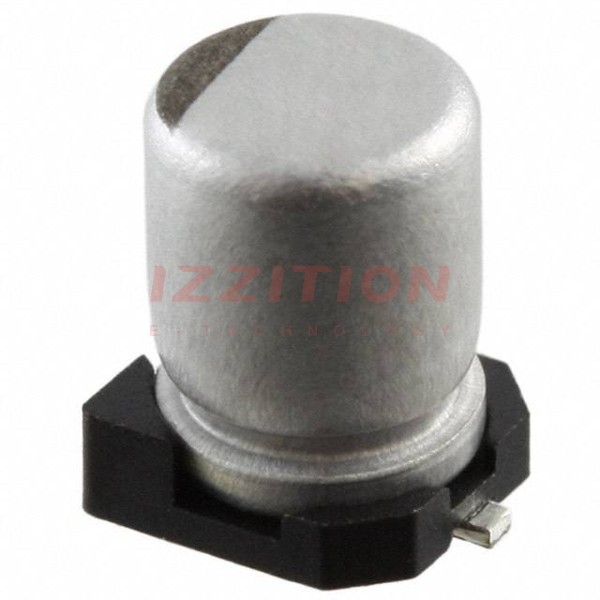

| Part Number | EDK106M016A9BAA | EDK106M016S9BAA |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 10 µF | 10 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 16 V | 16 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar |
| Ratings | - | AEC-Q200 |
| Applications | General Purpose | Automotive |
| Ripple Current @ Low Frequency | 28 mA @ 120 Hz | 28 mA @ 120 Hz |
| Ripple Current @ High Frequency | 35 mA @ 10 kHz | 35 mA @ 10 kHz |
| Impedance | - | - |
| Lead Spacing | - | - |
| Size / Dimension | 0.157" Dia (4.00mm) | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.222" (5.64mm) | 0.222" (5.65mm) |
| Surface Mount Land Size | 0.169" L x 0.217" W (4.30mm x 5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD |
