Please send RFQ , we will respond immediately.

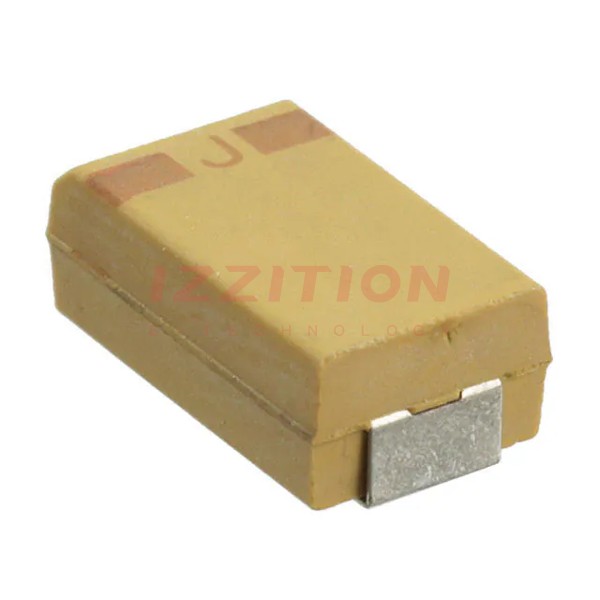

| Part Number | CWR11MH475KB | CWR11MH475KC | CWR11MH475KD | CWR11FH475KB | CWR11HH475KB | CWR11KH475KB |
|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 4.7 µF | 4.7 µF | 4.7 µF | 4.7 µF | 4.7 µF | 4.7 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 35 V | 35 V | 35 V | 10 V | 15 V | 25 V |
| Type | Molded | Molded | Molded | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 1.5Ohm | 1.5Ohm | 1.5Ohm | 4.5Ohm | 4Ohm | 2.5Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2917 (7343 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) | 1411 (3528 Metric) | 1411 (3528 Metric) | 2312 (6032 Metric) |
| Size / Dimension | 0.287" Dia x 0.169" L (7.30mm x 4.30mm) | 0.287" Dia x 0.169" L (7.30mm x 4.30mm) | 0.287" Dia x 0.169" L (7.30mm x 4.30mm) | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.236" L x 0.126" W (6.00mm x 3.20mm) |
| Height - Seated (Max) | 0.122" (3.10mm) | 0.122" (3.10mm) | 0.122" (3.10mm) | 0.083" (2.10mm) | 0.083" (2.10mm) | 0.110" (2.80mm) |
| Lead Spacing | - | - | - | - | - | - |
| Manufacturer Size Code | D | D | D | B | B | C |
| Ratings | - | - | - | - | - | - |
| Features | High Reliability | High Reliability | High Reliability | High Reliability | High Reliability | High Reliability |
| Failure Rate | B (0.1%) | C (0.01%) | D (0.001%) | B (0.1%) | B (0.1%) | B (0.1%) |
