Please send RFQ , we will respond immediately.

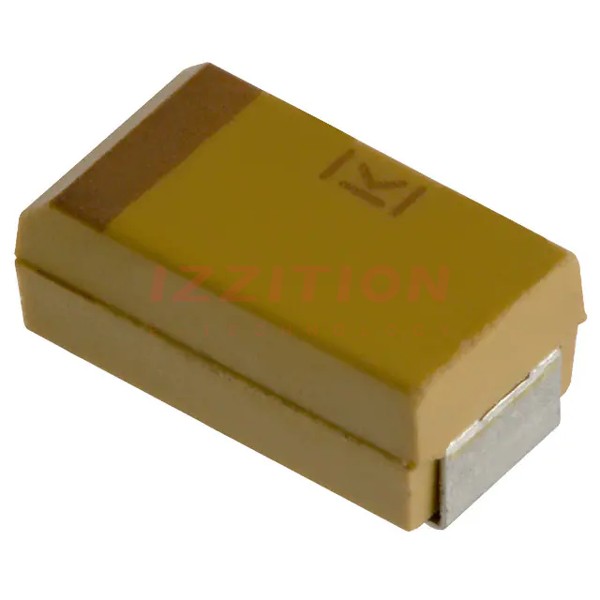

| Part Number | CWR11HH106KB | CWR11KH106KB | CWR11HH106KC | CWR11HH106KD | CWR11HH105KB | CWR11HH106JB |
|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 10 µF | 10 µF | 10 µF | 10 µF | 1 µF | 10 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% |
| Voltage - Rated | 15 V | 25 V | 15 V | 15 V | 15 V | 15 V |
| Type | Molded | Molded | Molded | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 2.5Ohm | 1.2Ohm | 2.5Ohm | 2.5Ohm | 10Ohm | 2.5Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2312 (6032 Metric) | 2917 (7343 Metric) | 2312 (6032 Metric) | 2312 (6032 Metric) | 1206 (3216 Metric) | 2312 (6032 Metric) |
| Size / Dimension | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.287" Dia x 0.169" L (7.30mm x 4.30mm) | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.236" L x 0.126" W (6.00mm x 3.20mm) |
| Height - Seated (Max) | 0.110" (2.80mm) | 0.122" (3.10mm) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.071" (1.80mm) | 0.110" (2.80mm) |
| Lead Spacing | - | - | - | - | - | - |
| Manufacturer Size Code | C | D | C | - | A | C |
| Ratings | - | - | - | - | - | - |
| Features | High Reliability | High Reliability | High Reliability | High Reliability | High Reliability | High Reliability |
| Failure Rate | B (0.1%) | B (0.1%) | C (0.01%) | D (0.001%) | B (0.1%) | B (0.1%) |
