Please send RFQ , we will respond immediately.

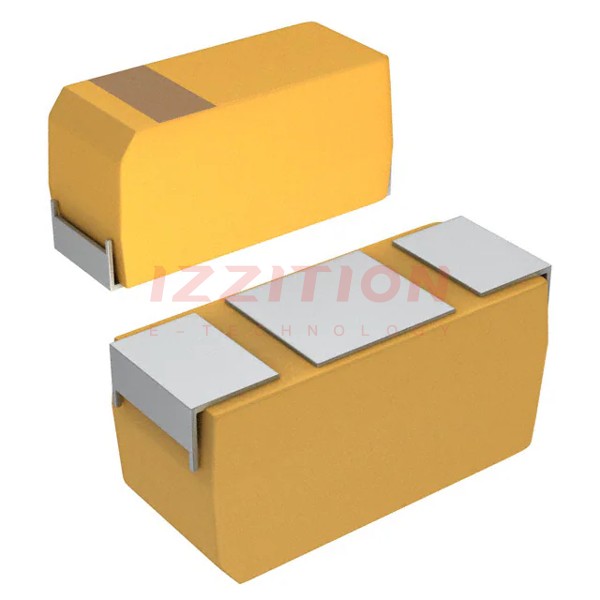

| Part Number | CWR09MC475KB | CWR09NC475KB | CWR09FC475KB | CWR09HC475KB | CWR09KC475KB |
|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KYOCERA AVX | KYOCERA AVX | KEMET |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 4.7 µF | 4.7 µF | 4.7 µF | 4.7 µF | 4.7 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 35 V | 50 V | 10 V | 15 V | 25 V |
| Type | Molded | Molded | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 1.5Ohm | 1.5Ohm | 4.5Ohm | 4Ohm | 2.5Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2711 (6728 Metric) | 2915 (7338 Metric) | 1510 (3825 Metric) | 2010 (5125 Metric) | 2214 (5634 Metric) |
| Size / Dimension | 0.265" L x 0.110" W (6.73mm x 2.79mm) | 0.285" L x 0.150" W (7.24mm x 3.81mm) | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.200" L x 0.100" W (5.08mm x 2.54mm) | 0.220" L x 0.135" W (5.59mm x 3.43mm) |
| Height - Seated (Max) | 0.125" (3.17mm) | 0.125" (3.17mm) | 0.065" (1.65mm) | 0.065" (1.65mm) | 0.085" (2.16mm) |
| Lead Spacing | - | - | - | - | - |
| Manufacturer Size Code | G | H | D | E | - |
| Ratings | - | - | - | - | - |
| Features | High Reliability | High Reliability | High Reliability | High Reliability | High Reliability |
| Failure Rate | B (0.1%) | B (0.1%) | B (0.1%) | B (0.1%) | B (0.1%) |
