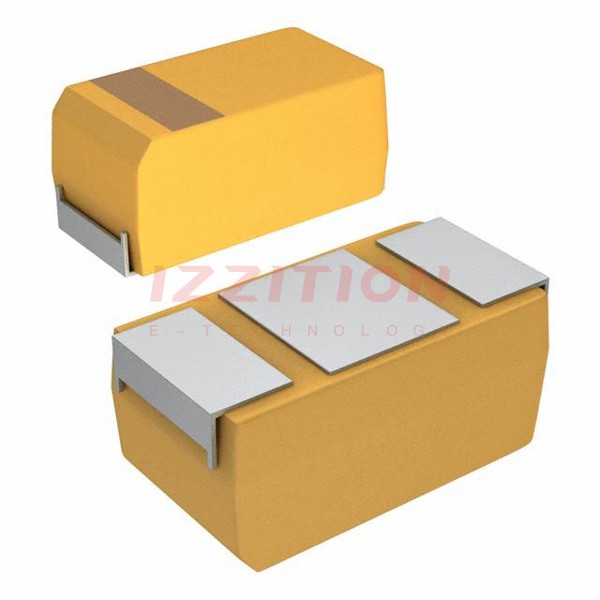

| Part Number | CWR09HC336KB | CWR09HK336KB | CWR09HC336MB | CWR09HC336KBB | CWR09FC336KB |
|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 33 µF | 33 µF | 33 µF | 33 µF | 33 µF |
| Tolerance | ±10% | ±10% | ±20% | ±10% | ±10% |
| Voltage - Rated | 15 V | 15 V | 15 V | 15 V | 10 V |
| Type | Molded | Molded | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 900mOhm | 900mOhm | 900mOhm | 900mOhm | 1.1Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2915 (7338 Metric) | 2915 (7338 Metric) | 2915 (7338 Metric) | 2915 (7338 Metric) | 2711 (6728 Metric) |
| Size / Dimension | 0.285" L x 0.150" W (7.24mm x 3.81mm) | 0.285" L x 0.150" W (7.24mm x 3.81mm) | 0.285" L x 0.150" W (7.24mm x 3.81mm) | 0.285" L x 0.150" W (7.24mm x 3.81mm) | 0.265" L x 0.110" W (6.73mm x 2.79mm) |
| Height - Seated (Max) | 0.125" (3.17mm) | 0.125" (3.17mm) | 0.125" (3.17mm) | 0.125" (3.17mm) | 0.125" (3.17mm) |
| Lead Spacing | - | - | - | - | - |
| Manufacturer Size Code | H | H | H | H | G |
| Ratings | - | - | - | - | - |
| Features | High Reliability | High Reliability | High Reliability | High Reliability | High Reliability |
| Failure Rate | B (0.1%) | B (0.1%) | B (0.1%) | B (0.1%) | B (0.1%) |
