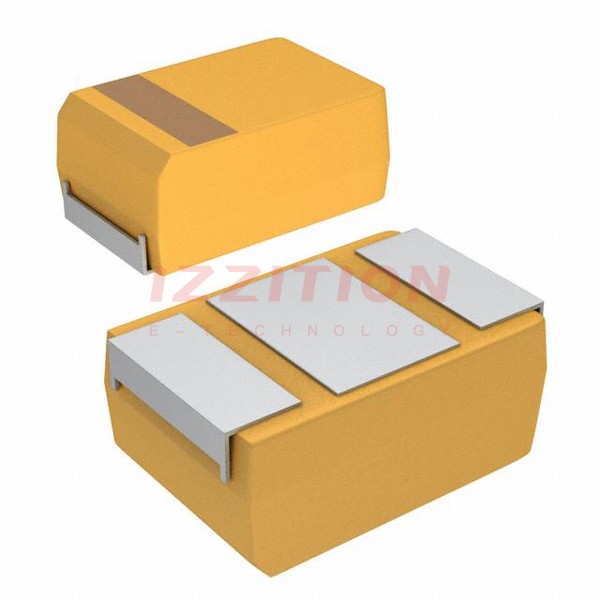

| Part Number | CWR09HC106KB | CWR09KC106KB | CWR09HK106KB |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 10 µF | 10 µF | 10 µF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage - Rated | 15 V | 25 V | 15 V |
| Type | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 2.5Ohm | 1.4Ohm | 2.5Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2214 (5634 Metric) | 2711 (6728 Metric) | 2214 (5634 Metric) |
| Size / Dimension | 0.220" L x 0.135" W (5.59mm x 3.43mm) | 0.265" L x 0.110" W (6.73mm x 2.79mm) | 0.220" L x 0.135" W (5.59mm x 3.43mm) |
| Height - Seated (Max) | 0.085" (2.16mm) | 0.125" (3.17mm) | 0.085" (2.16mm) |
| Lead Spacing | - | - | - |
| Manufacturer Size Code | - | - | F |
| Ratings | - | - | - |
| Features | High Reliability | High Reliability | High Reliability |
| Failure Rate | B (0.1%) | B (0.1%) | B (0.1%) |
