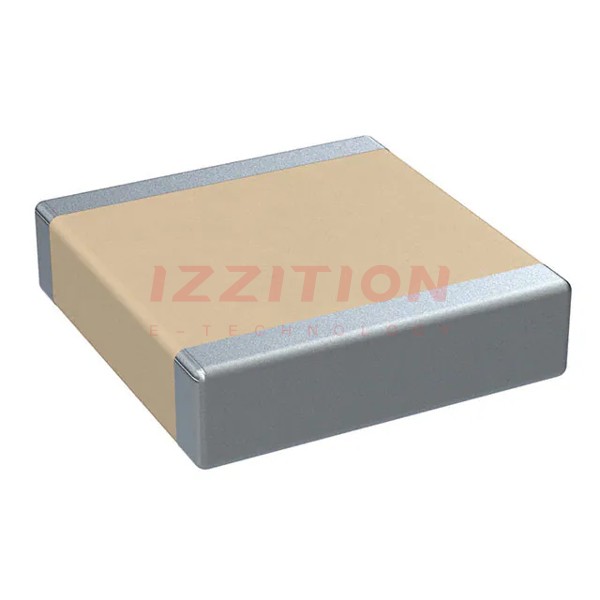

| Part Number | CKC33C224FCGAC7800 | CKC33C224KCGAC7800 | CKC33C224MCGAC7800 | CKC33C224JCGAC7800 | CKC33C224GCGAC7800 | CKC33C223FCGAC7800 |
|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.22 µF | 0.22 µF | 0.22 µF | 0.22 µF | 0.22 µF | 0.022 µF |
| Tolerance | ±1% | ±10% | ±20% | ±5% | ±2% | ±1% |
| Voltage - Rated | 500V | 500V | 500V | 500V | 500V | 500V |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
| Features | Low ESL, High Voltage, High Temperature | Low ESL, High Voltage, High Temperature | Low ESL, High Voltage, High Temperature | Low ESL, High Voltage, High Temperature | Low ESL, High Voltage, High Temperature | Low ESL, High Voltage, High Temperature |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 3640 (9110 Metric) | 3640 (9110 Metric) | 3640 (9110 Metric) | 3640 (9110 Metric) | 3640 (9110 Metric) | 3640 (9110 Metric) |
| Size / Dimension | 0.366" L x 0.402" W (9.30mm x 10.20mm) | 0.366" L x 0.402" W (9.30mm x 10.20mm) | 0.366" L x 0.402" W (9.30mm x 10.20mm) | 0.366" L x 0.402" W (9.30mm x 10.20mm) | 0.366" L x 0.402" W (9.30mm x 10.20mm) | 0.366" L x 0.402" W (9.30mm x 10.20mm) |
| Height - Seated (Max) | - | - | - | - | - | - |
| Thickness (Max) | 0.106" (2.70mm) | 0.106" (2.70mm) | 0.106" (2.70mm) | 0.106" (2.70mm) | 0.106" (2.70mm) | 0.106" (2.70mm) |
| Lead Spacing | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - |
