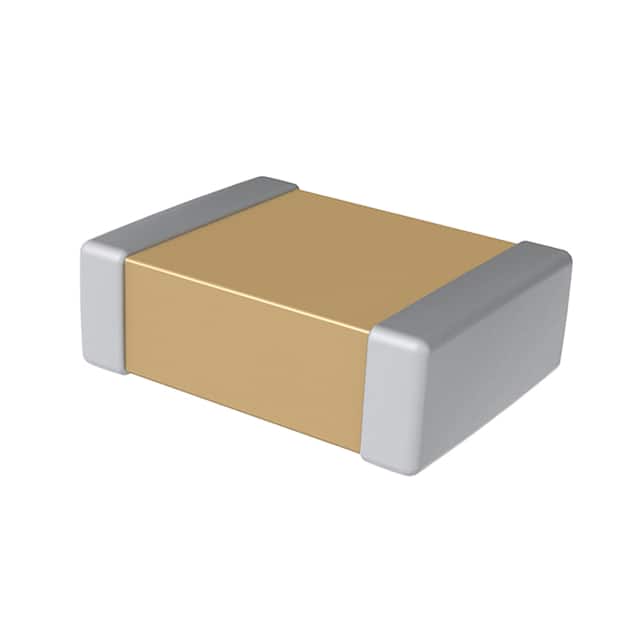

| Part Number | CKC21X562KWGAC7800 | CKC21X562MWGAC7800 | CKC21X563KWGAC7800 | CKC21X512KWGAC7800 | CKC21X562FWGAC7800 | CKC21X562GWGAC7800 | CKC21X562JWGAC7800 | CKC21X562KCGAC7800 | CKC21X562KDGAC7800 | CKC21X562KEGAC7800 | CKC21X562KJGAC7800 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 5600 pF | 5600 pF | 0.056 µF | 5100 pF | 5600 pF | 5600 pF | 5600 pF | 5600 pF | 5600 pF | 5600 pF | 5600 pF |
| Tolerance | ±10% | ±20% | ±10% | ±10% | ±1% | ±2% | ±5% | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 650V | 650V | 650V | 650V | 650V | 650V | 650V | 500V | 1000V (1kV) | 1200V (1.2kV) | 1700V (1.7kV) |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
| Features | Low ESL, Soft Termination, High Voltage, High Temperature | Low ESL, Soft Termination, High Voltage, High Temperature | Low ESL, Soft Termination, High Voltage, High Temperature | Low ESL, Soft Termination, High Voltage, High Temperature | Low ESL, Soft Termination, High Voltage, High Temperature | Low ESL, Soft Termination, High Voltage, High Temperature | Low ESL, Soft Termination, High Voltage, High Temperature | Low ESL, Soft Termination, High Voltage, High Temperature | Low ESL, Soft Termination, High Voltage, High Temperature | Low ESL, Soft Termination, High Voltage, High Temperature | Low ESL, Soft Termination, High Voltage, High Temperature |
| Ratings | - | - | - | - | - | - | - | - | - | - | - |
| Applications | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 2220 (5750 Metric) | 2220 (5750 Metric) | 2220 (5750 Metric) | 2220 (5750 Metric) | 2220 (5750 Metric) | 2220 (5750 Metric) | 2220 (5750 Metric) | 2220 (5750 Metric) | 2220 (5750 Metric) | 2220 (5750 Metric) | 2220 (5750 Metric) |
| Size / Dimension | 0.232" L x 0.197" W (5.90mm x 5.00mm) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | 0.232" L x 0.197" W (5.90mm x 5.00mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - |
| Thickness (Max) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.071" (1.80mm) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.087" (2.20mm) |
| Lead Spacing | - | - | - | - | - | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - | - | - | - | - | - |
