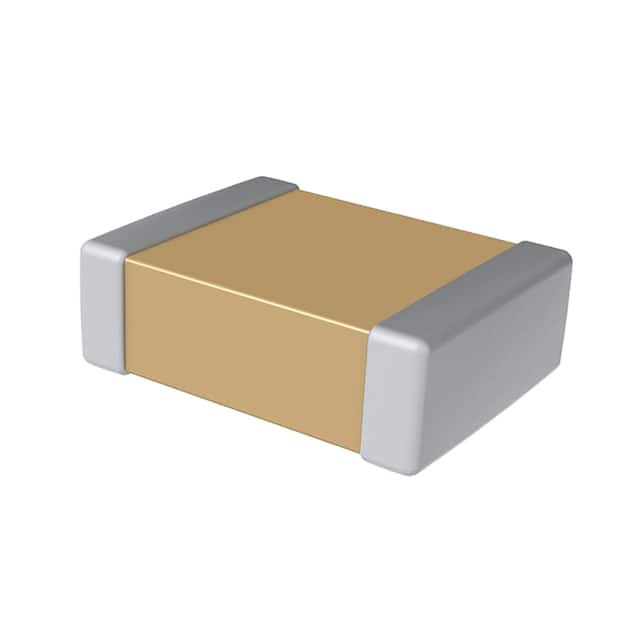

| Part Number | CKC21X123MCGAC7800 | CKC21X153MCGAC7800 | CKC21X183MCGAC7800 | CKC21X123MWGAC7800 | CKC21X123MEGAC7800 | CKC21X123MDGAC7800 | CKC21X103MCGAC7800 | CKC21X123FCGAC7800 | CKC21X123GCGAC7800 | CKC21X123JCGAC7800 | CKC21X123KCGAC7800 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.012 µF | 0.015 µF | 0.018 µF | 0.012 µF | 0.012 µF | 0.012 µF | 10000 pF | 0.012 µF | 0.012 µF | 0.012 µF | 0.012 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±1% | ±2% | ±5% | ±10% |
| Voltage - Rated | 500V | 500V | 500V | 650V | 1200V (1.2kV) | 1000V (1kV) | 500V | 500V | 500V | 500V | 500V |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
| Features | Low ESL, Soft Termination, High Voltage, High Temperature | Low ESL, Soft Termination, High Voltage, High Temperature | Low ESL, Soft Termination, High Voltage, High Temperature | Low ESL, Soft Termination, High Voltage, High Temperature | Low ESL, Soft Termination, High Voltage, High Temperature | Low ESL, Soft Termination, High Voltage, High Temperature | Low ESL, Soft Termination, High Voltage, High Temperature | Low ESL, Soft Termination, High Voltage, High Temperature | Low ESL, Soft Termination, High Voltage, High Temperature | Low ESL, Soft Termination, High Voltage, High Temperature | Low ESL, Soft Termination, High Voltage, High Temperature |
| Ratings | - | - | - | - | - | - | - | - | - | - | - |
| Applications | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 2220 (5750 Metric) | 2220 (5750 Metric) | 2220 (5750 Metric) | 2220 (5750 Metric) | 2220 (5750 Metric) | 2220 (5750 Metric) | 2220 (5750 Metric) | 2220 (5750 Metric) | 2220 (5750 Metric) | 2220 (5750 Metric) | 2220 (5750 Metric) |
| Size / Dimension | 0.232" L x 0.197" W (5.90mm x 5.00mm) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | 0.232" L x 0.197" W (5.90mm x 5.00mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - |
| Thickness (Max) | 0.106" (2.70mm) | 0.061" (1.55mm) | 0.061" (1.55mm) | 0.106" (2.70mm) | 0.106" (2.70mm) | 0.106" (2.70mm) | 0.087" (2.20mm) | 0.106" (2.70mm) | 0.106" (2.70mm) | 0.106" (2.70mm) | 0.106" (2.70mm) |
| Lead Spacing | - | - | - | - | - | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - | - | - | - | - | - |
