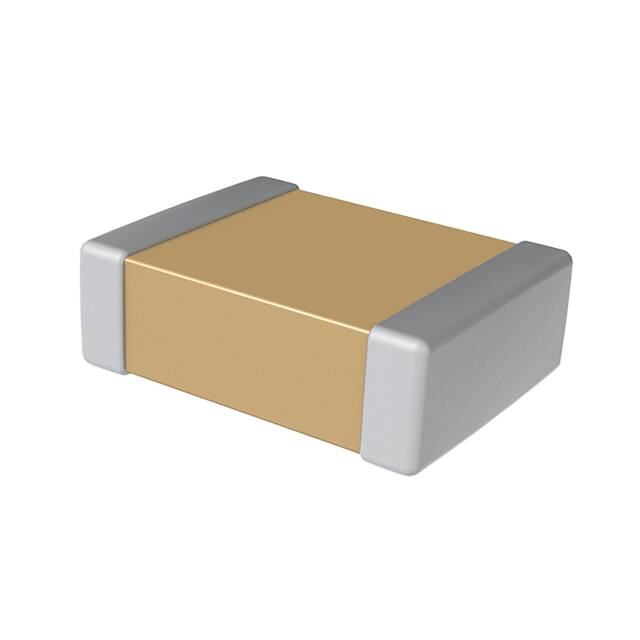

| Part Number | CKC18X103JDGAC7800 | CKC18X103JWGAC7800 | CKC18X103MDGAC7800 | CKC18X103KDGAC7800 | CKC18X153JDGAC7800 | CKC18X123JDGAC7800 | CKC18X103FDGAC7800 | CKC18X103GDGAC7800 | CKC18X103JCGAC7800 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 10000 pF | 10000 pF | 10000 pF | 10000 pF | 0.015 µF | 0.012 µF | 10000 pF | 10000 pF | 10000 pF |
| Tolerance | ±5% | ±5% | ±20% | ±10% | ±5% | ±5% | ±1% | ±2% | ±5% |
| Voltage - Rated | 1000V (1kV) | 650V | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 500V |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
| Features | Low ESL, Soft Termination, High Voltage, High Temperature | Low ESL, Soft Termination, High Voltage, High Temperature | Low ESL, Soft Termination, High Voltage, High Temperature | Low ESL, Soft Termination, High Voltage, High Temperature | Low ESL, Soft Termination, High Voltage, High Temperature | Low ESL, Soft Termination, High Voltage, High Temperature | Low ESL, Soft Termination, High Voltage, High Temperature | Low ESL, Soft Termination, High Voltage, High Temperature | Low ESL, Soft Termination, High Voltage, High Temperature |
| Ratings | - | - | - | - | - | - | - | - | - |
| Applications | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive |
| Failure Rate | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 1812 (4532 Metric) | 1812 (4532 Metric) | 1812 (4532 Metric) | 1812 (4532 Metric) | 1812 (4532 Metric) | 1812 (4532 Metric) | 1812 (4532 Metric) | 1812 (4532 Metric) | 1812 (4532 Metric) |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - |
| Thickness (Max) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.106" (2.70mm) | 0.106" (2.70mm) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.087" (2.20mm) |
| Lead Spacing | - | - | - | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - | - | - | - |
