Please send RFQ , we will respond immediately.

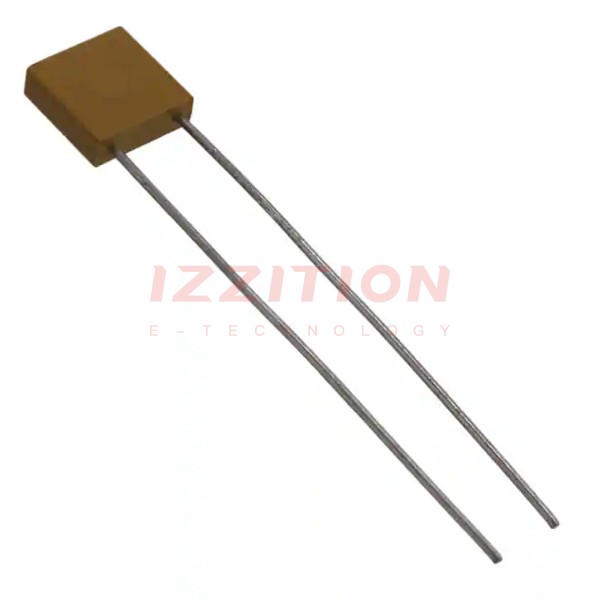

| Part Number | CK06BX104K | CK06BX105K | CK05BX104K | CK06BX103K |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active |
| Capacitance | 0.1 µF | 1 µF | 0.1 µF | 10000 pF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 100V | 50V | 50V | 200V |
| Temperature Coefficient | BX | BX | BX | BX |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | - | - | - | - |
| Ratings | - | - | - | - |
| Applications | High Reliability | High Reliability | High Reliability | High Reliability |
| Failure Rate | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.290" L x 0.090" W (7.37mm x 2.29mm) | 0.290" L x 0.090" W (7.37mm x 2.29mm) | 0.190" L x 0.090" W (4.83mm x 2.29mm) | 0.290" L x 0.090" W (7.37mm x 2.29mm) |
| Height - Seated (Max) | 0.300" (7.62mm) | 0.300" (7.62mm) | 0.200" (5.08mm) | 0.300" (7.62mm) |
| Thickness (Max) | - | - | - | - |
| Lead Spacing | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Lead Style | Straight | Straight | Formed Leads | Straight |
