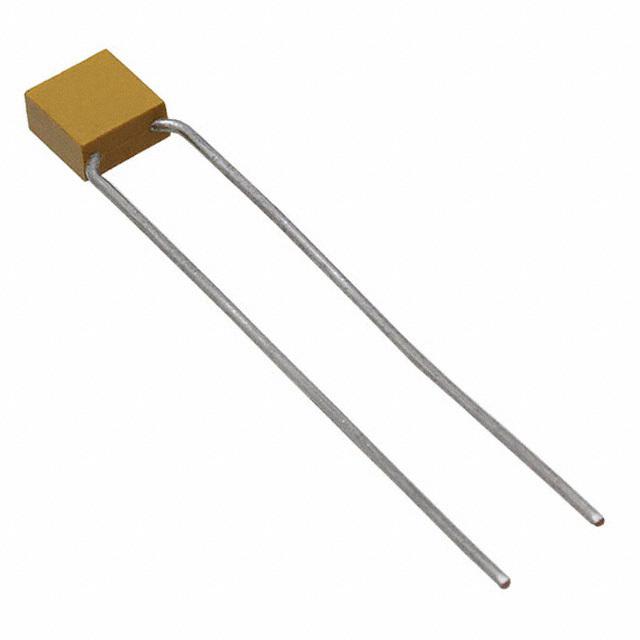

| Part Number | CCR05CG102FR | CCR05CG102JR | CCR05CG102FM | CCR05CG102FP |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active |
| Capacitance | 1000 pF | 1000 pF | 1000 pF | 1000 pF |
| Tolerance | ±1% | ±5% | ±1% | ±1% |
| Voltage - Rated | 100V | 100V | 100V | 100V |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | - | - | - | - |
| Ratings | - | - | - | - |
| Applications | High Reliability | High Reliability | High Reliability | High Reliability |
| Failure Rate | R (0.01%) | R (0.01%) | M (1%) | P (0.1%) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.190" L x 0.090" W (4.83mm x 2.29mm) | 0.190" L x 0.090" W (4.83mm x 2.29mm) | 0.190" L x 0.090" W (4.83mm x 2.29mm) | 0.190" L x 0.090" W (4.83mm x 2.29mm) |
| Height - Seated (Max) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Thickness (Max) | - | - | - | - |
| Lead Spacing | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Lead Style | Formed Leads | Formed Leads | Formed Leads | Formed Leads |
