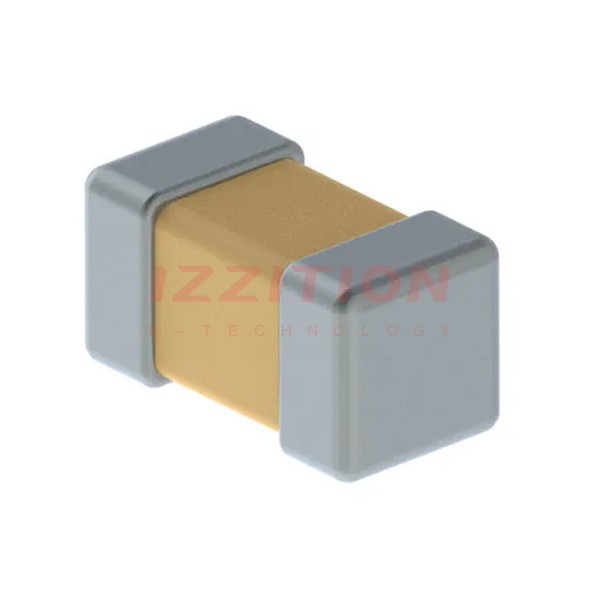

| Part Number | CBR06C509B1GAC | CBR06C509B5GAC | CBR06C509BAGAC | CBR06C509C1GAC | CBR06C569B1GAC | CBR06C609B1GAC | CBR06C709B1GAC | CBR06C409B1GAC | CBR06C508B1GAC | CBR06C509A1GAC |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 5 pF | 5 pF | 5 pF | 5 pF | 5.6 pF | 6 pF | 7 pF | 4 pF | 0.5 pF | 5 pF |
| Tolerance | ±0.1pF | ±0.1pF | ±0.1pF | ±0.25pF | ±0.1pF | ±0.1pF | ±0.1pF | ±0.1pF | ±0.1pF | ±0.05pF |
| Voltage - Rated | 100V | 50V | 250V | 100V | 100V | 100V | 100V | 100V | 100V | 100V |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Applications | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency |
| Failure Rate | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - |
| Thickness (Max) | 0.034" (0.87mm) | 0.034" (0.87mm) | 0.034" (0.87mm) | 0.034" (0.87mm) | 0.034" (0.87mm) | 0.034" (0.87mm) | 0.034" (0.87mm) | 0.034" (0.87mm) | 0.034" (0.87mm) | 0.034" (0.87mm) |
| Lead Spacing | - | - | - | - | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - | - | - | - | - |
