Please send RFQ , we will respond immediately.

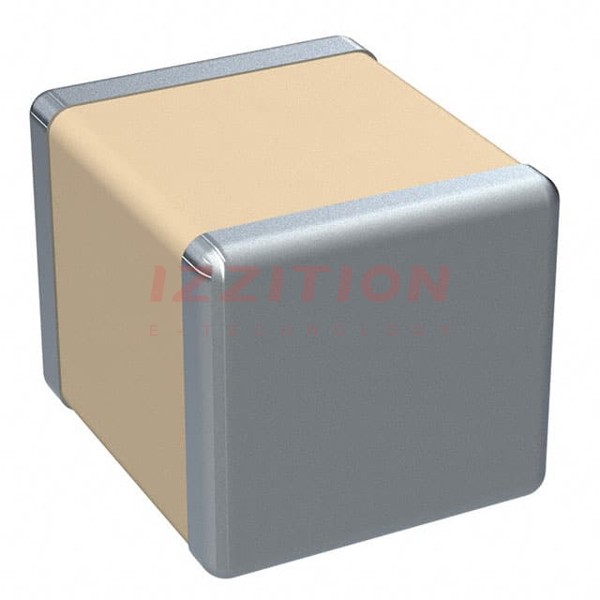

| Part Number | CBR05C109BAGAC | CBR06C109BAGAC | CBR05C209BAGAC | CBR05C129BAGAC | CBR05C189BAGAC | CBR05C309BAGAC | CBR05C159BAGAC |
|---|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 1 pF | 1 pF | 2 pF | 1.2 pF | 1.8 pF | 3 pF | 1.5 pF |
| Tolerance | ±0.1pF | ±0.1pF | ±0.1pF | ±0.1pF | ±0.1pF | ±0.1pF | ±0.1pF |
| Voltage - Rated | 250V | 250V | 250V | 250V | 250V | 250V | 250V |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR |
| Ratings | - | - | - | - | - | - | - |
| Applications | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency |
| Failure Rate | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 0505 (1313 Metric) | 0603 (1608 Metric) | 0505 (1313 Metric) | 0505 (1313 Metric) | 0505 (1313 Metric) | 0505 (1313 Metric) | 0505 (1313 Metric) |
| Size / Dimension | 0.055" L x 0.055" W (1.40mm x 1.40mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | 0.055" L x 0.055" W (1.40mm x 1.40mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - |
| Thickness (Max) | 0.051" (1.30mm) | 0.034" (0.87mm) | 0.051" (1.30mm) | 0.051" (1.30mm) | 0.051" (1.30mm) | 0.051" (1.30mm) | 0.051" (1.30mm) |
| Lead Spacing | - | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - | - |
