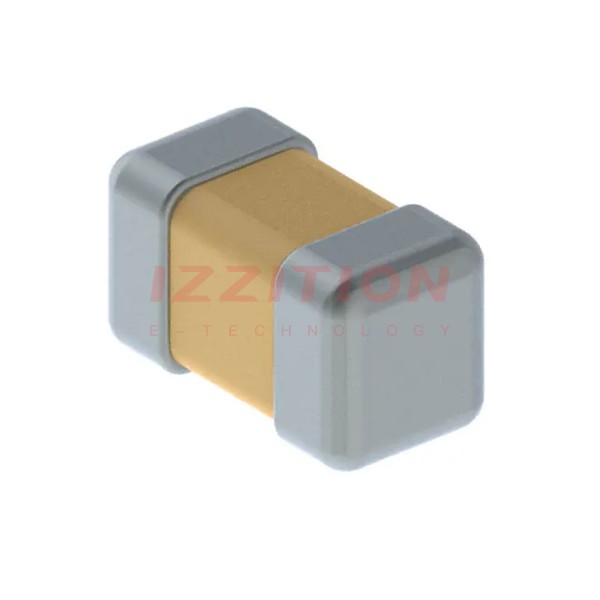

| Part Number | CBR04C509B5GAC | CBR04C809B5GAC | CBR04C569B5GAC | CBR04C609B5GAC | CBR04C529B5GAC | CBR04C519B5GAC | CBR04C549B5GAC | CBR04C709B5GAC | CBR04C559B5GAC | CBR04C539B5GAC | CBR04C589B5GAC | CBR04C579B5GAC | CBR04C599B5GAC | CBR04C509C5GAC | CBR04C309B5GAC | CBR04C409B5GAC | CBR04C508B5GAC | CBR04C509A5GAC | CBR04C509B1GAC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 5 pF | 8 pF | 5.6 pF | 6 pF | 5.2 pF | 5.1 pF | 5.4 pF | 7 pF | 5.5 pF | 5.3 pF | 5.8 pF | 5.7 pF | 5.9 pF | 5 pF | 3 pF | 4 pF | 0.5 pF | 5 pF | 5 pF |
| Tolerance | ±0.1pF | ±0.1pF | ±0.1pF | ±0.1pF | ±0.1pF | ±0.1pF | ±0.1pF | ±0.1pF | ±0.1pF | ±0.1pF | ±0.1pF | ±0.1pF | ±0.1pF | ±0.25pF | ±0.1pF | ±0.1pF | ±0.1pF | ±0.05pF | ±0.1pF |
| Voltage - Rated | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 100V |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR |
| Ratings | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Applications | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Thickness (Max) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) |
| Lead Spacing | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
