Please send RFQ , we will respond immediately.

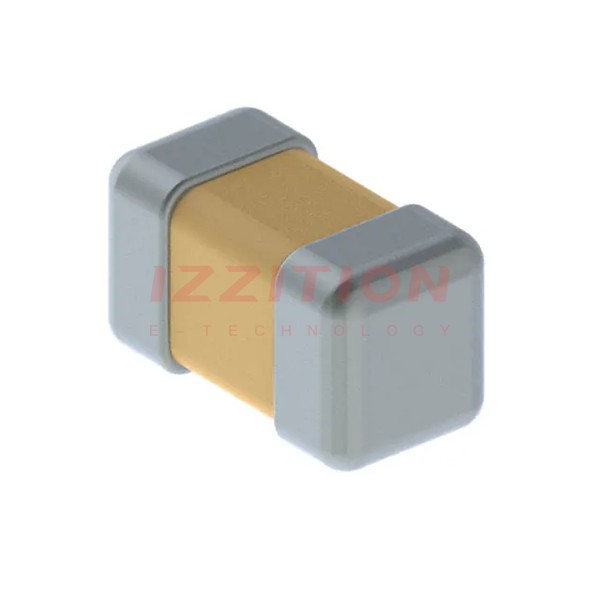

| Part Number | CBR04C109B1GAC | CBR04C109B5GAC | CBR04C129B1GAC | CBR04C159B1GAC | CBR04C189B1GAC | CBR04C209B1GAC | CBR04C109C1GAC | CBR04C108B1GAC | CBR04C109A1GAC |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 1 pF | 1 pF | 1.2 pF | 1.5 pF | 1.8 pF | 2 pF | 1 pF | 0.1 pF | 1 pF |
| Tolerance | ±0.1pF | ±0.1pF | ±0.1pF | ±0.1pF | ±0.1pF | ±0.1pF | ±0.25pF | ±0.1pF | ±0.05pF |
| Voltage - Rated | 100V | 50V | 100V | 100V | 100V | 100V | 100V | 100V | 100V |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR | High Q, Low Loss, Ultra Low ESR |
| Ratings | - | - | - | - | - | - | - | - | - |
| Applications | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency |
| Failure Rate | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - |
| Thickness (Max) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) |
| Lead Spacing | - | - | - | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - | - | - | - |
