Please send RFQ , we will respond immediately.

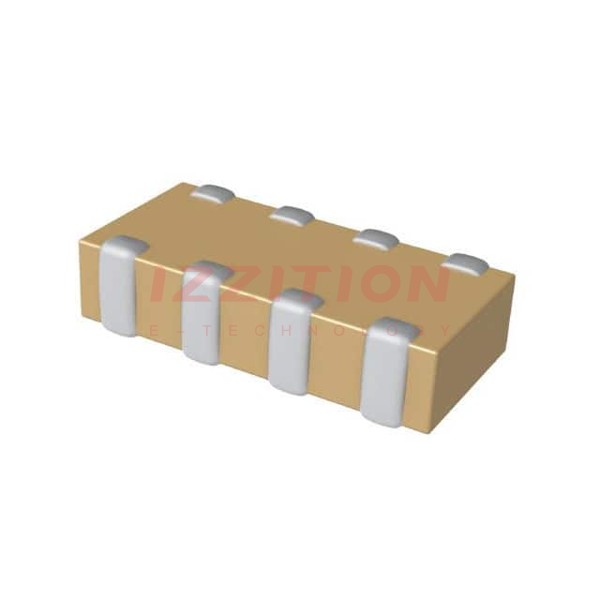

| Part Number | CA052X104K4RAC7800 | CA052X104K5RAC7800 | CA052X104M4RAC7800 | CA052X103K4RAC7800 |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 0.1µF | 0.1µF | 0.1µF | 10000pF |
| Tolerance | ±10% | ±10% | ±20% | ±10% |
| Voltage - Rated | 16 V | 50 V | 16 V | 16 V |
| Dielectric Material | Ceramic | Ceramic | Ceramic | Ceramic |
| Number of Capacitors | 2 | 2 | 2 | 2 |
| Circuit Type | Isolated | Isolated | Isolated | Isolated |
| Temperature Coefficient | X7R | X7R | X7R | X7R |
| Ratings | AEC-Q200 | - | AEC-Q200 | AEC-Q200 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) |
| Supplier Device Package | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) |
| Size / Dimension | 0.083" L x 0.051" W (2.10mm x 1.30mm) | 0.051" L x 0.083" W (1.30mm x 2.10mm) | 0.083" L x 0.051" W (2.10mm x 1.30mm) | 0.083" L x 0.051" W (2.10mm x 1.30mm) |
| Height - Seated (Max) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) |
