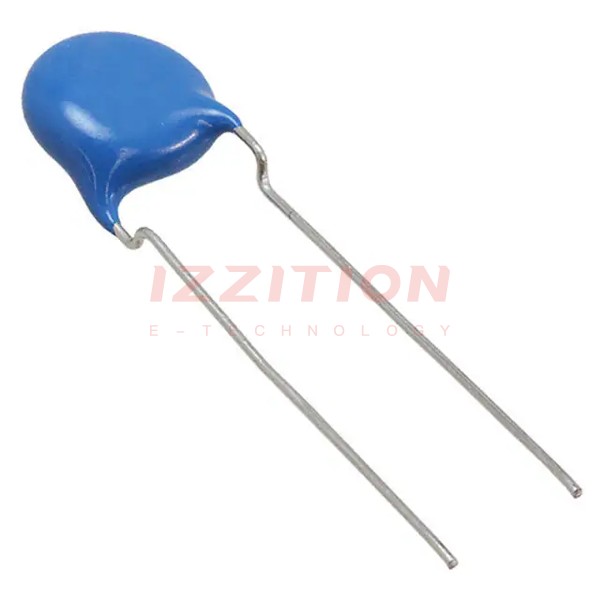

| Part Number | C947U472MZVDBA7317 | C947U472MZVDCA7317 | C947U472MYVDBA7317 | C947U472MZVDAA7317 |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active |
| Capacitance | 4700 pF | 4700 pF | 4700 pF | 4700 pF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 440VAC | 440VAC | 400VAC | 440VAC |
| Temperature Coefficient | Y5V (F) | Y5V (F) | Y5V (F) | Y5V (F) |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Features | - | - | - | - |
| Ratings | X1, Y2 | X1, Y2 | X1, Y2 | X1, Y2 |
| Applications | Safety | Safety | Safety | Safety |
| Failure Rate | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.433" Dia (11.00mm) | 0.433" Dia (11.00mm) | 0.433" Dia (11.00mm) | 0.433" Dia (11.00mm) |
| Height - Seated (Max) | - | - | - | - |
| Thickness (Max) | - | - | - | - |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Lead Style | Formed Leads - Kinked | Formed Leads - Kinked | Formed Leads - Kinked | Straight |
