Please send RFQ , we will respond immediately.

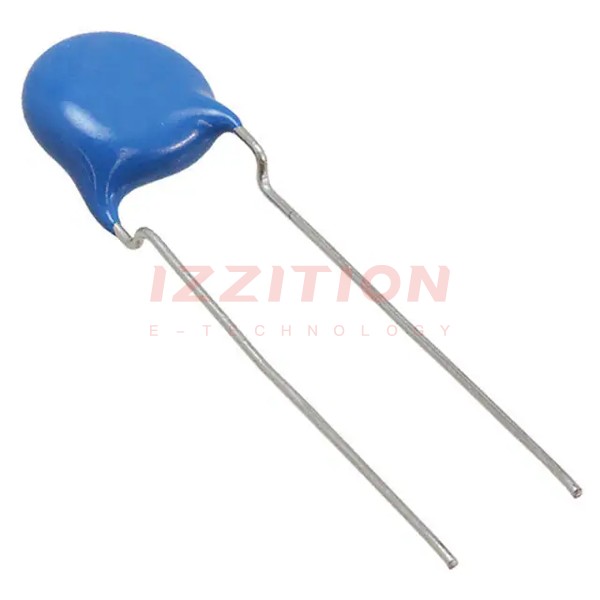

| Part Number | C901U510JZSDAAWL50 | C901U510JZSDAAWL20 | C901U510JZSDAAWL40 |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Obsolete |
| Capacitance | 51 pF | 51 pF | 51 pF |
| Tolerance | ±5% | ±5% | ±5% |
| Voltage - Rated | 2500V (2.5kV) | 440VAC | 440VAC |
| Temperature Coefficient | SL | SL | SL |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Features | - | - | - |
| Ratings | X1, Y2 | X1, Y2 | X1, Y2 |
| Applications | Safety | Safety | Safety |
| Failure Rate | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.276" Dia (7.00mm) | 0.276" Dia (7.00mm) | 0.276" Dia (7.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) | - | - |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Lead Style | Straight | Straight | Straight |
