Please send RFQ , we will respond immediately.

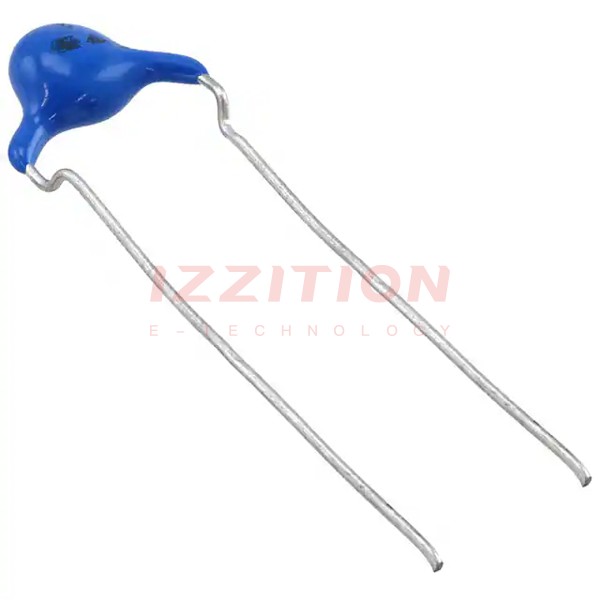

| Part Number | C901U102MZWDBA7317 | C901U102MZWDCA7317 | C901U102MYWDBA7317 | C901U102MZVDBA7317 | C901U102MZWDAA7317 |
|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 1000 pF | 1000 pF | 1000 pF | 1000 pF | 1000 pF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 440VAC | 440VAC | 400VAC | 440VAC | 440VAC |
| Temperature Coefficient | Y5U (E) | Y5U (E) | Y5U (E) | Y5V (F) | Y5U (E) |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Features | - | - | - | - | - |
| Ratings | X1, Y2 | X1, Y2 | X1, Y2 | X1, Y2 | X1, Y2 |
| Applications | Safety | Safety | Safety | Safety | Safety |
| Failure Rate | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.276" Dia (7.00mm) | 0.276" Dia (7.00mm) | 0.276" Dia (7.00mm) | 0.276" Dia (7.00mm) | 0.276" Dia (7.00mm) |
| Height - Seated (Max) | - | - | - | - | - |
| Thickness (Max) | - | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Lead Style | Formed Leads - Kinked | Formed Leads - Kinked | Formed Leads - Kinked | Formed Leads - Kinked | Straight |
