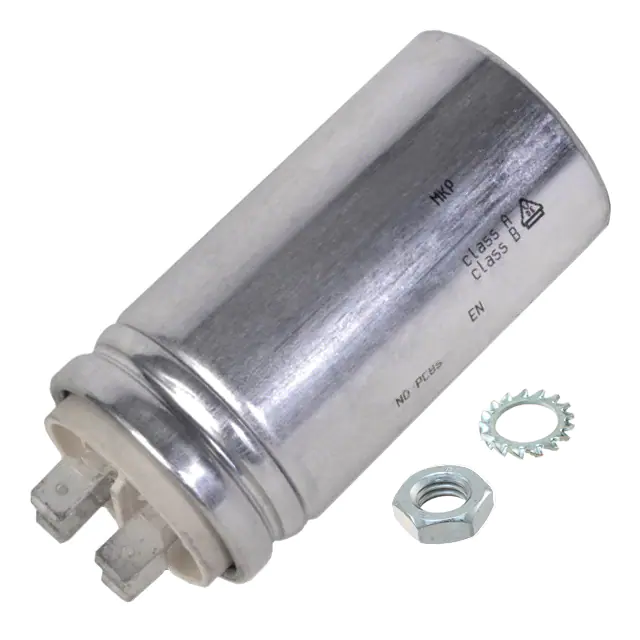

| Part Number | C878BF34400SA0J | C878BF34800SA0J | C878BF35400SA0J | C878BF34600SA0J | C878BF34200SA0J |
|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 4 µF | 8 µF | 40 µF | 6 µF | 2 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 470V | 470V | 470V | 470V | 470V |
| Voltage Rating - DC | - | - | - | - | - |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Mounting Type | Chassis, Stud Mount | Chassis, Stud Mount | Chassis, Stud Mount | Chassis, Stud Mount | Chassis, Stud Mount |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
| Size / Dimension | 1.378" Dia (35.00mm) | 1.181" Dia (30.00mm) | 1.772" Dia (45.00mm) | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) | 3.150" (80.00mm) | 5.236" (133.00mm) | 3.150" (80.00mm) | 1.969" (50.00mm) |
| Termination | Quick Connect - 0.250" (6.3mm) | Quick Connect - 0.250" (6.3mm) | Quick Connect - 0.250" (6.3mm) | Quick Connect - 0.250" (6.3mm) | Quick Connect - 0.250" (6.3mm) |
| Lead Spacing | 0.528" (13.40mm) | 0.528" (13.40mm) | 0.528" (13.40mm) | 0.528" (13.40mm) | 0.528" (13.40mm) |
| Applications | Motor Run | Motor Run | Motor Run | Motor Run | Motor Run |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
