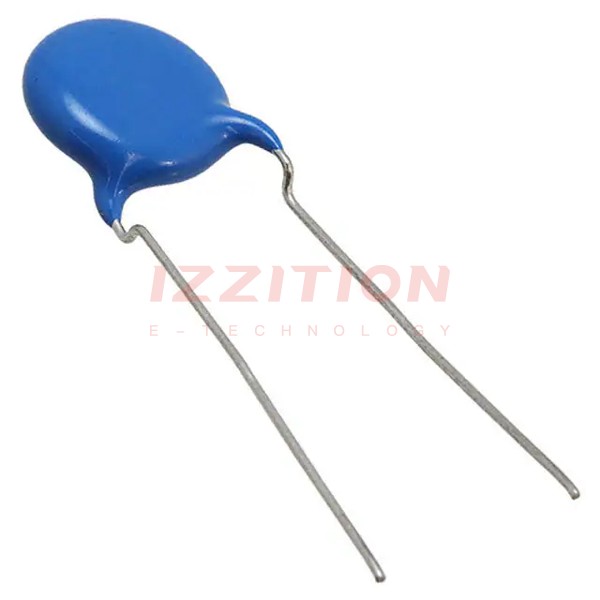

| Part Number | C782U472MSWDBAWL25 | C782U472MTWDBAWL25 | C781U472MSWDBAWL25 |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 4700 pF | 4700 pF | 4700 pF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 440VAC | 440VAC | 440VAC |
| Temperature Coefficient | Y5U (E) | Y5U (E) | Y5U (E) |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Features | - | - | - |
| Ratings | X1, Y1 | X1, Y1 | X1, Y1 |
| Applications | Safety | Safety | Safety |
| Failure Rate | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.591" Dia (15.00mm) | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) | 0.748" (19.00mm) | 0.787" (20.00mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.394" (10.00mm) |
| Lead Style | Straight | Straight | Straight |
