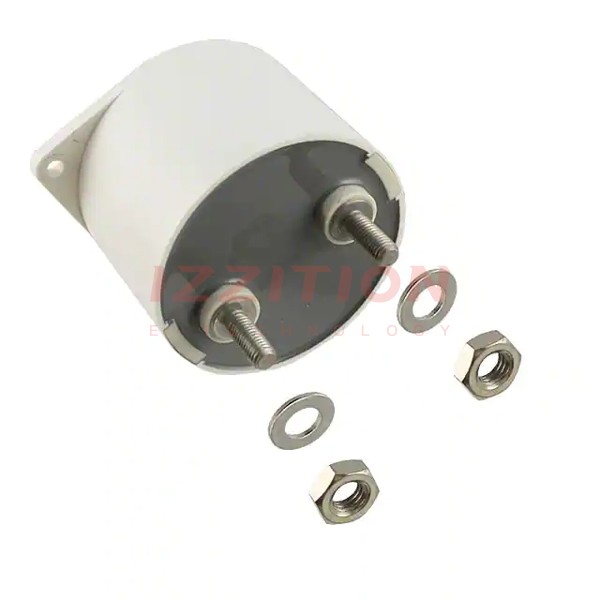

| Part Number | C4DENPQ5680A8TK | C4DEIPQ5680A8TK |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 68 µF | 68 µF |
| Tolerance | ±10% | ±10% |
| Voltage Rating - AC | - | - |
| Voltage Rating - DC | 1000V (1kV) | 800V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 1.1 mOhms | 0.7 mOhms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can | Radial, Can |
| Size / Dimension | 3.307" Dia (84.00mm) | 3.307" Dia (84.00mm) |
| Height - Seated (Max) | 2.598" (66.00mm) | 2.598" (66.00mm) |
| Termination | Threaded, Male | Threaded, Male |
| Lead Spacing | 1.772" (45.00mm) | 1.772" (45.00mm) |
| Applications | DC Link, DC Filtering | DC Link, DC Filtering |
| Ratings | - | - |
| Features | Low ESL | Low ESL |
