KEMET-C4BTMBX4500ZALJ - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	5 µF
Tolerance:	±5%
Voltage Rating - AC:	450V
Voltage Rating - DC:	850V
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	2.2 mOhms
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Chassis Mount
Package / Case:	Rectangular Box
Size / Dimension:	1.654" L x 1.181" W (42.00mm x 30.00mm)
Height - Seated (Max):	1.772" (45.00mm)
Termination:	Screw Terminals
Lead Spacing:	1.004" (25.50mm)
Applications:	DC Link, DC Filtering; High Frequency, Switching
Ratings:	-
Features:	-

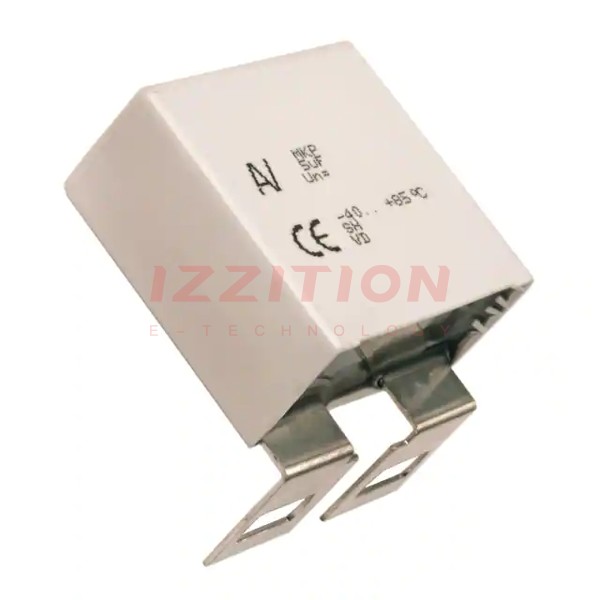

KEMET C4BTMBX4500ZALJ
