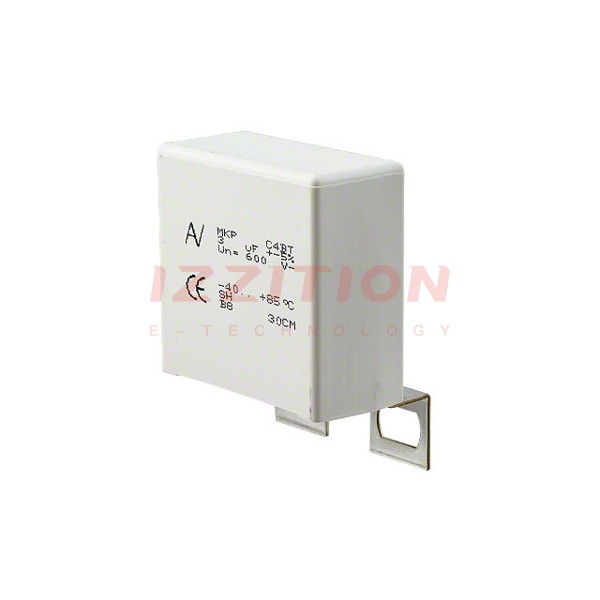

| Part Number | C4BTHBX4300ZAFJ | C4BTHBX4500ZAFJ |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 3 µF | 5 µF |
| Tolerance | ±5% | ±5% |
| Voltage Rating - AC | 330V | 330V |
| Voltage Rating - DC | 600V | 600V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 4.8 mOhms | 2.9 mOhms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Rectangular Box | Rectangular Box |
| Size / Dimension | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.634" L x 0.787" W (41.50mm x 20.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) | 1.575" (40.00mm) |
| Termination | Screw Terminals | Screw Terminals |
| Lead Spacing | 1.004" (25.50mm) | 1.004" (25.50mm) |
| Applications | DC Link, DC Filtering; High Frequency, Switching | DC Link, DC Filtering; High Frequency, Switching |
| Ratings | - | - |
| Features | - | - |
