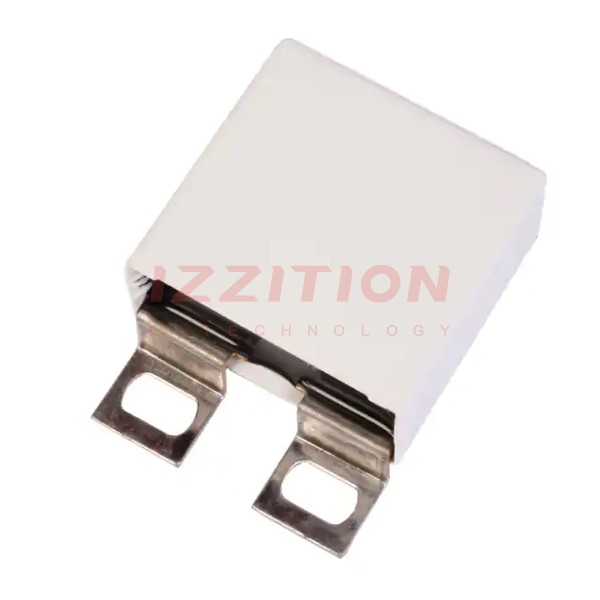

| Part Number | C4BSWBX3100ZBFJ | C4BSWBX3100ZMFJ | C4BSWBX3100ZAFJ |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 0.1 µF | 0.1 µF | 0.1 µF |
| Tolerance | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 700V | - | 700V |
| Voltage Rating - DC | 2000V (2kV) | 2000V (2kV) | 2000V (2kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 23.3 mOhms | - | 23.3 mOhms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Rectangular Box | Rectangular Box | Rectangular Box |
| Size / Dimension | 1.634" L x 0.787" W (41.50mm x 20.00mm) | - | 1.634" L x 0.787" W (41.50mm x 20.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) | - | 1.575" (40.00mm) |
| Termination | Screw Terminals | Screw Terminals | Screw Terminals |
| Lead Spacing | 0.866" (22.00mm) | - | 1.004" (25.50mm) |
| Applications | DC Link, DC Filtering; Snubber | DC Link, DC Filtering; Snubber | DC Link, DC Filtering; Snubber |
| Ratings | - | - | - |
| Features | - | - | - |
