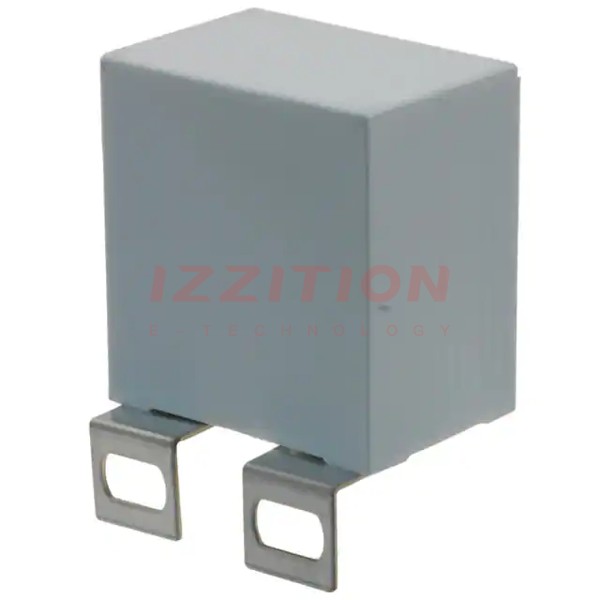

| Part Number | C4BSPBX4150ZALJ | C4BSPBX4150ZBLJ |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 1.5 µF | 1.5 µF |
| Tolerance | ±5% | ±5% |
| Voltage Rating - AC | 630V | 630V |
| Voltage Rating - DC | 1200V (1.2kV) | 1200V (1.2kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 2.3 mOhms | 2.3 mOhms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Rectangular Box | Rectangular Box |
| Size / Dimension | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.654" L x 1.181" W (42.00mm x 30.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) | 1.772" (45.00mm) |
| Termination | Screw Terminals | Screw Terminals |
| Lead Spacing | 1.004" (25.50mm) | 0.866" (22.00mm) |
| Applications | DC Link, DC Filtering; Snubber | DC Link, DC Filtering; Snubber |
| Ratings | - | - |
| Features | - | - |
