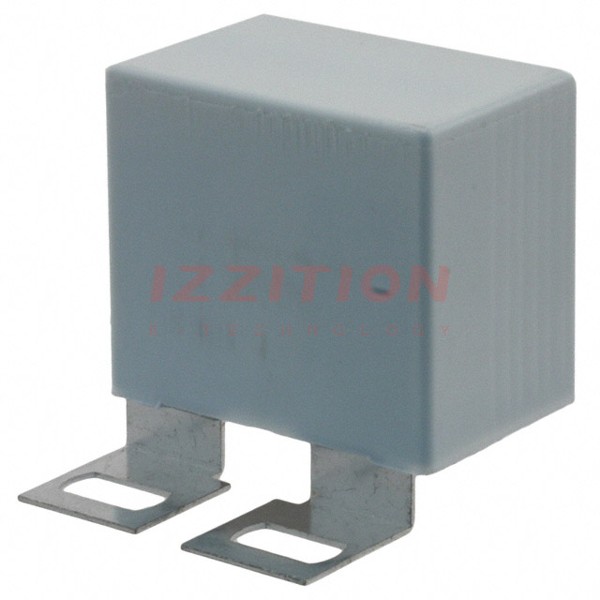

| Part Number | C4BSPBX4120ZBJJ | C4BSPBX4100ZBJJ | C4BSPBX4120ZAJJ | C4BSPBX4120ZB0J |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active |
| Capacitance | 1.2 µF | 1 µF | 1.2 µF | 1.2 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 630V | 630V | 630V | 630V |
| Voltage Rating - DC | 1200V (1.2kV) | 1200V (1.2kV) | 1200V (1.2kV) | 1200V (1.2kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 2.8 mOhms | 3.3 mOhms | 2.8 mOhms | 2.8 mOhms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Rectangular Box | Rectangular Box | Rectangular Box | Rectangular Box |
| Size / Dimension | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.673" L x 1.102" W (42.50mm x 28.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) | 1.457" (37.00mm) | 1.457" (37.00mm) | 1.457" (37.00mm) |
| Termination | Screw Terminals | Screw Terminals | Screw Terminals | Screw Terminals |
| Lead Spacing | 0.866" (22.00mm) | 0.866" (22.00mm) | 1.004" (25.50mm) | 0.866" (22.00mm) |
| Applications | DC Link, DC Filtering; Snubber | DC Link, DC Filtering; Snubber | DC Link, DC Filtering; Snubber | DC Link, DC Filtering; Snubber |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
