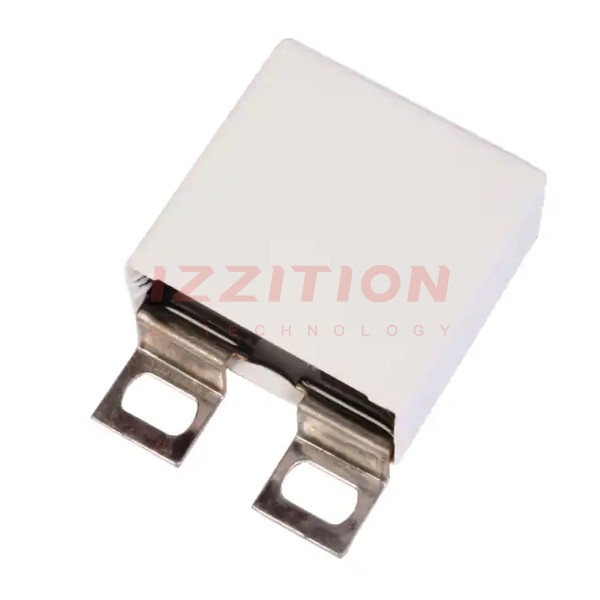

| Part Number | C4BSPBX4100ZA0J | C4BSPBX4100ZAJJ | C4BSNBX4100ZA0J |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 1 µF | 1 µF | 1 µF |
| Tolerance | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | 630V | - |
| Voltage Rating - DC | 1200V (1.2kV) | 1200V (1.2kV) | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | 3.3 mOhms | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Rectangular Box | Rectangular Box | Rectangular Box |
| Size / Dimension | - | 1.673" L x 1.102" W (42.50mm x 28.00mm) | - |
| Height - Seated (Max) | - | 1.457" (37.00mm) | - |
| Termination | Screw Terminals | Screw Terminals | Screw Terminals |
| Lead Spacing | - | 1.004" (25.50mm) | - |
| Applications | DC Link, DC Filtering; Snubber | DC Link, DC Filtering; Snubber | DC Link, DC Filtering; Snubber |
| Ratings | - | - | - |
| Features | - | - | - |
