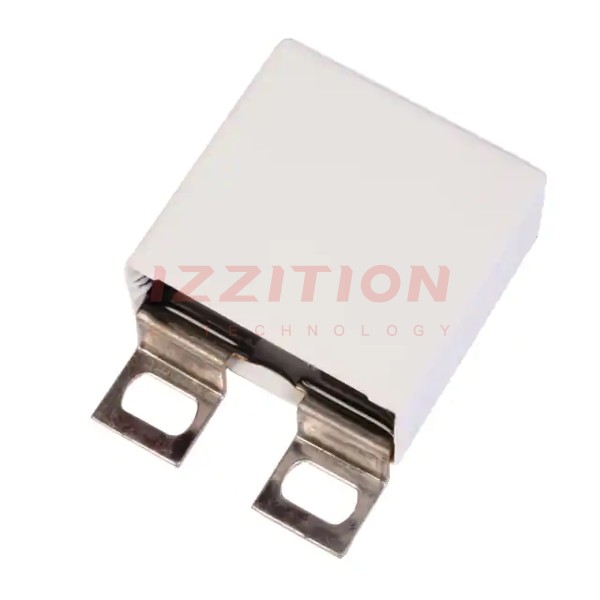

KEMET-C4BSNBX4250ZBMJ - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	2.5 µF
Tolerance:	±5%
Voltage Rating - AC:	600V
Voltage Rating - DC:	1000V (1kV)
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	3.3 mOhms
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Chassis Mount
Package / Case:	Rectangular Box
Size / Dimension:	2.264" L x 1.181" W (57.50mm x 30.00mm)
Height - Seated (Max):	1.772" (45.00mm)
Termination:	Screw Terminals
Lead Spacing:	1.457" (37.00mm)
Applications:	DC Link, DC Filtering; Snubber
Ratings:	-
Features:	-

KEMET C4BSNBX4250ZBMJ
