KEMET-C4ATHBW4900A3LJ - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	9 µF
Tolerance:	±5%
Voltage Rating - AC:	350V
Voltage Rating - DC:	600V
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	1.9 mOhms
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Through Hole
Package / Case:	Radial - 4 Leads
Size / Dimension:	1.654" L x 1.181" W (42.00mm x 30.00mm)
Height - Seated (Max):	1.772" (45.00mm)
Termination:	PC Pins
Lead Spacing:	1.476" (37.50mm)
Applications:	DC Link, DC Filtering; High Frequency, Switching
Ratings:	-
Features:	-

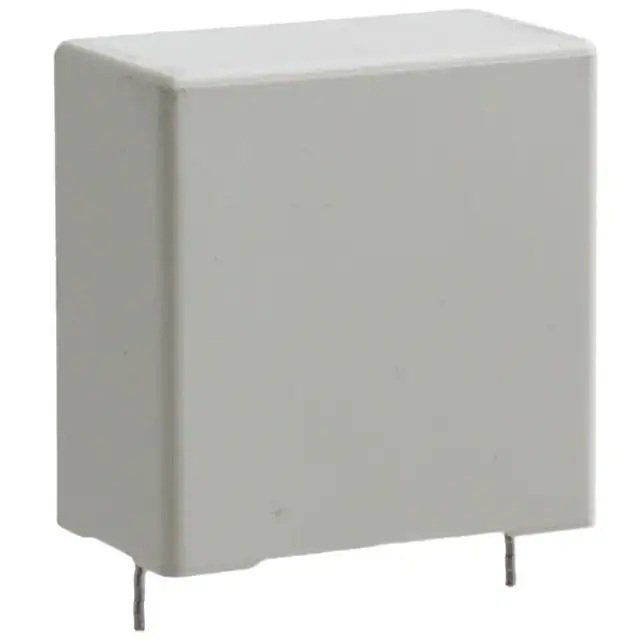

KEMET C4ATHBW4900A3LJ
