KEMET-C4ATFBW5400A3NJ - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	40 µF
Tolerance:	±5%
Voltage Rating - AC:	250V
Voltage Rating - DC:	400V
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	1.4 mOhms
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Through Hole
Package / Case:	Radial - 4 Leads
Size / Dimension:	2.264" L x 1.378" W (57.50mm x 35.00mm)
Height - Seated (Max):	1.969" (50.00mm)
Termination:	PC Pins
Lead Spacing:	2.067" (52.50mm)
Applications:	DC Link, DC Filtering; High Frequency, Switching
Ratings:	-
Features:	-

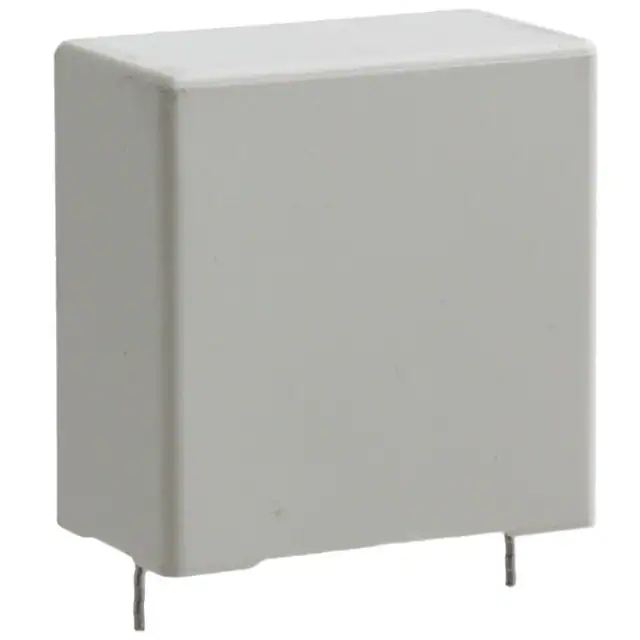

KEMET C4ATFBW5400A3NJ
