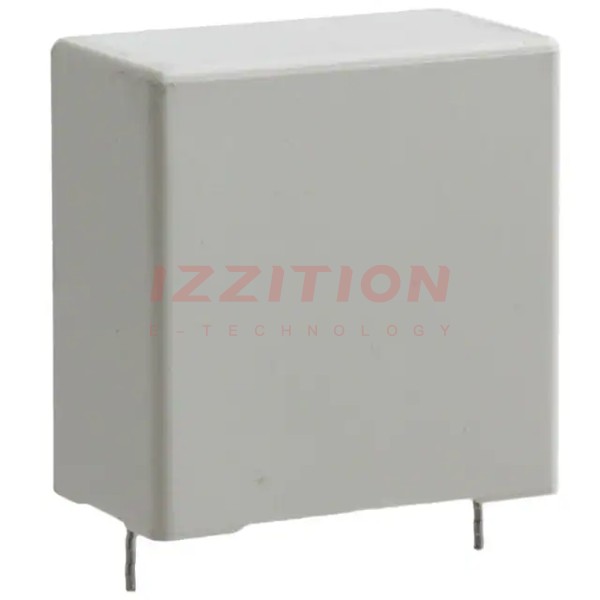

KEMET-C4ATFBW5300A3MJ - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	30 µF
Tolerance:	±5%
Voltage Rating - AC:	250V
Voltage Rating - DC:	400V
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	1.7 mOhms
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Through Hole
Package / Case:	Radial - 4 Leads
Size / Dimension:	2.264" L x 1.181" W (57.50mm x 30.00mm)
Height - Seated (Max):	1.772" (45.00mm)
Termination:	PC Pins
Lead Spacing:	2.067" (52.50mm)
Applications:	DC Link, DC Filtering; High Frequency, Switching
Ratings:	-
Features:	-

KEMET C4ATFBW5300A3MJ
