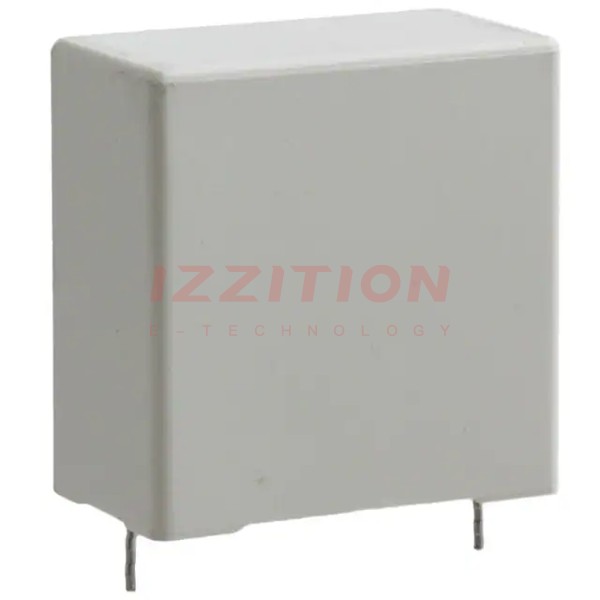

| Part Number | C4ATDBW5600A30J | C4ATDBW5100A30J | C4ATDBW5200A30J | C4ATDBW5300A30J |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active |
| Capacitance | 60 µF | 10 µF | 20 µF | 30 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 160V | 160V | 160V | 160V |
| Voltage Rating - DC | 250V | 250V | 250V | 250V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 3.9 mOhms | 3.1 mOhms | 4.2 mOhms | 2.6 mOhms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial - 4 Leads | Radial - 4 Leads | Radial - 4 Leads | Radial - 4 Leads |
| Size / Dimension | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.673" L x 1.181" W (42.50mm x 30.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) | 1.299" (33.00mm) | 1.457" (37.00mm) | 1.772" (45.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 2.067" (52.50mm) | 1.083" (27.50mm) | 1.476" (37.50mm) | 1.476" (37.50mm) |
| Applications | DC Link, DC Filtering; High Frequency, Switching | DC Link, DC Filtering; High Frequency, Switching | DC Link, DC Filtering; High Frequency, Switching | DC Link, DC Filtering; High Frequency, Switching |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
