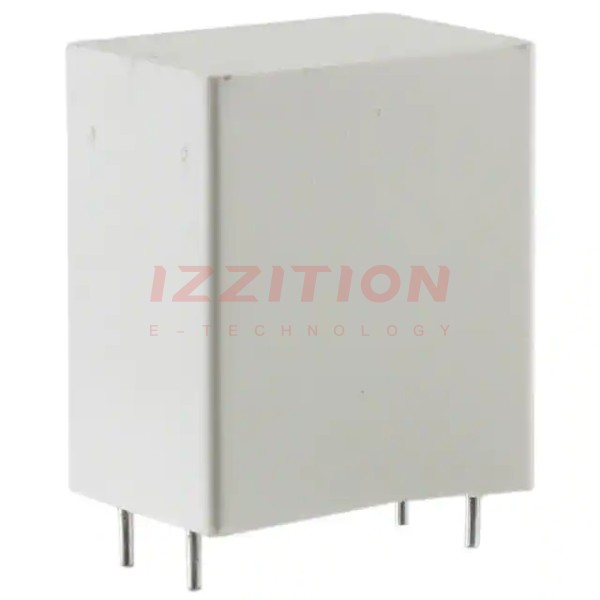

| Part Number | C4ASPBW3470A3GJ | C4ASPBU3470A3GJ |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 0.47 µF | 0.47 µF |
| Tolerance | ±5% | ±5% |
| Voltage Rating - AC | 630V | 630V |
| Voltage Rating - DC | 1200V (1.2kV) | 1200V (1.2kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 3.7 mOhms | 4.8 mOhms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial - 4 Leads | Radial - 4 Leads |
| Size / Dimension | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.260" L x 0.866" W (32.00mm x 22.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) | 1.457" (37.00mm) |
| Termination | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 1.083" (27.50mm) |
| Applications | Snubber | Snubber |
| Ratings | - | - |
| Features | - | - |
