Please send RFQ , we will respond immediately.

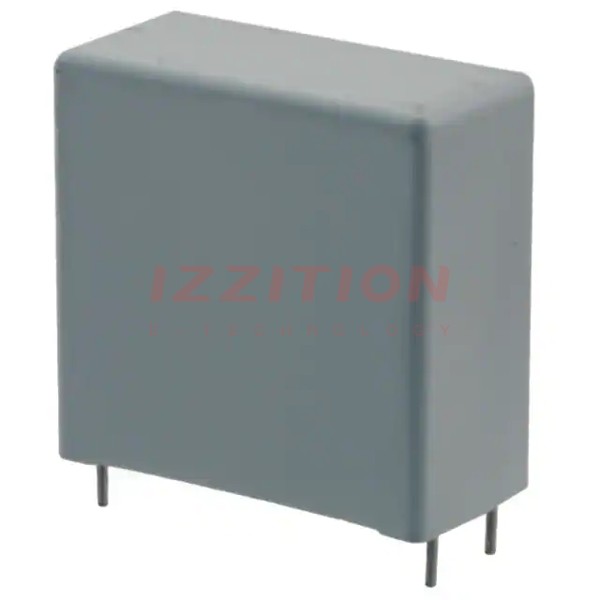

| Part Number | C4ASMBW4100A3FJ | C4ASPBW4100A3FJ | C4ASNBW4100A3FJ |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 1 µF | 1 µF | 1 µF |
| Tolerance | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 500V | 630V | 600V |
| Voltage Rating - DC | 850V | 1200V (1.2kV) | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 4.1 mOhms | 3.5 mOhms | 3.9 mOhms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial - 4 Leads | Radial - 4 Leads | Radial - 4 Leads |
| Size / Dimension | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.634" L x 0.787" W (41.50mm x 20.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) | 1.575" (40.00mm) | 1.575" (40.00mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.476" (37.50mm) | 1.476" (37.50mm) | 1.476" (37.50mm) |
| Applications | Snubber | Snubber | Snubber |
| Ratings | - | - | - |
| Features | - | - | - |
