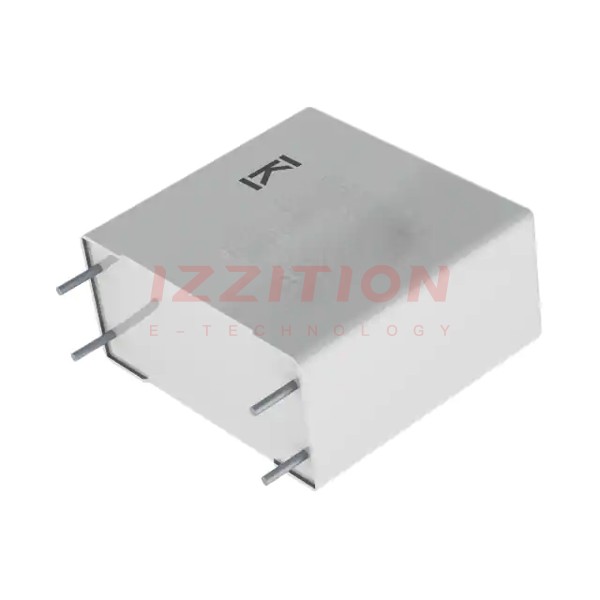

KEMET-C4AQULW5100A38J - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	10 µF
Tolerance:	±5%
Voltage Rating - AC:	-
Voltage Rating - DC:	1300V (1.3kV)
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	6.3 mOhms
Operating Temperature:	-55°C ~ 105°C
Mounting Type:	Through Hole
Package / Case:	Radial - 4 Leads
Size / Dimension:	1.654" L x 1.693" W (42.00mm x 43.00mm)
Height - Seated (Max):	0.992" (25.20mm)
Termination:	PC Pins
Lead Spacing:	1.476" (37.50mm)
Applications:	Automotive; DC Link, DC Filtering
Ratings:	AEC-Q200
Features:	-

KEMET C4AQULW5100A38J
