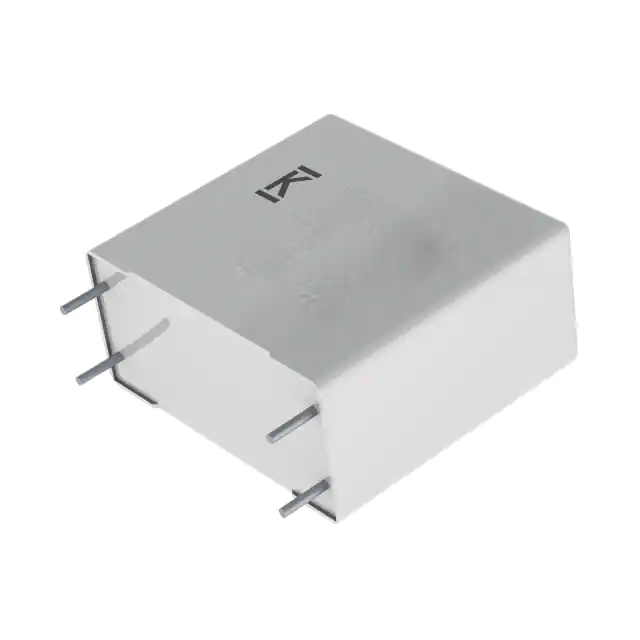

KEMET-C4AQSLW4220A34J - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	2.2 µF
Tolerance:	±5%
Voltage Rating - AC:	-
Voltage Rating - DC:	1500V (1.5kV)
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	25.2 mOhms
Operating Temperature:	-55°C ~ 105°C
Mounting Type:	Through Hole
Package / Case:	Radial - 4 Leads
Size / Dimension:	1.634" L x 0.945" W (41.50mm x 24.00mm)
Height - Seated (Max):	0.598" (15.20mm)
Termination:	PC Pins
Lead Spacing:	1.476" (37.50mm)
Applications:	Automotive; DC Link, DC Filtering
Ratings:	AEC-Q200
Features:	-

KEMET C4AQSLW4220A34J
