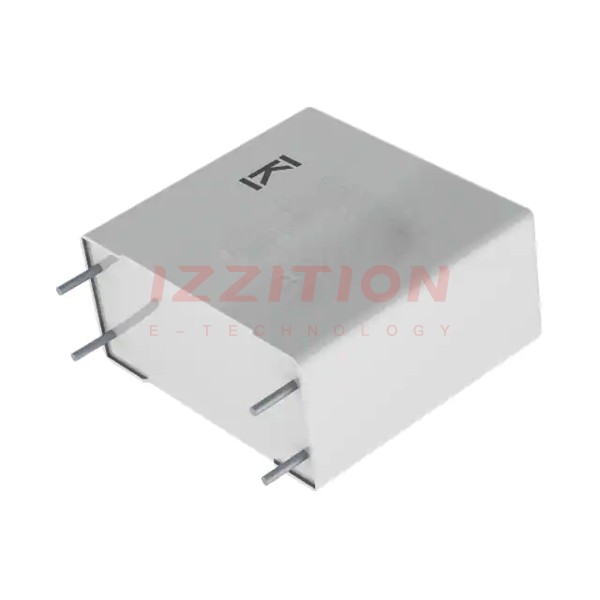

| Part Number | C4AQLLU5150A19K | C4AQLLU5150M19K |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 15 µF | 15 µF |
| Tolerance | ±10% | ±10% |
| Voltage Rating - AC | - | - |
| Voltage Rating - DC | 500V | 500V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 5.5 mOhms | 5.5 mOhms |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 1.260" L x 1.220" W (32.00mm x 31.00mm) | 1.260" L x 1.220" W (32.00mm x 31.00mm) |
| Height - Seated (Max) | 0.756" (19.20mm) | 0.756" (19.20mm) |
| Termination | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 1.083" (27.50mm) |
| Applications | Automotive; DC Link, DC Filtering | Automotive; DC Link, DC Filtering |
| Ratings | AEC-Q200 | AEC-Q200 |
| Features | - | Low ESL |
