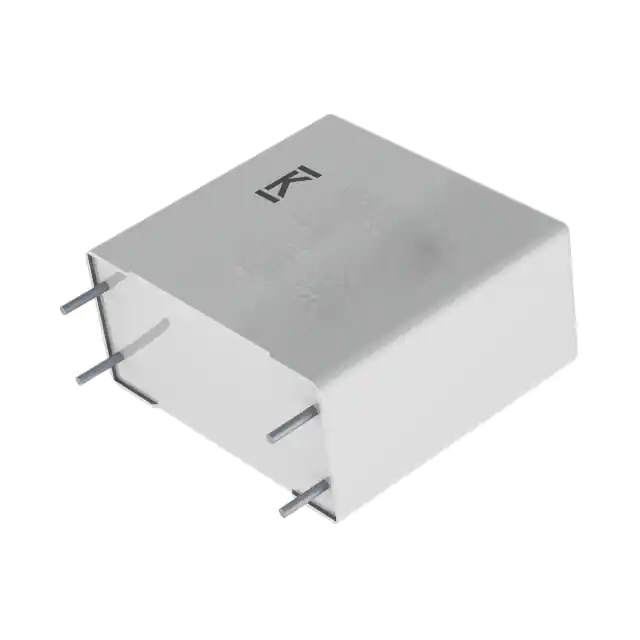

| Part Number | C4AQILW5220A38J | C4AQILW5220M38J |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 22 µF | 22 µF |
| Tolerance | ±5% | ±5% |
| Voltage Rating - AC | - | - |
| Voltage Rating - DC | 800V | 800V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 4.3 mOhms | 4.3 mOhms |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial - 4 Leads | Radial - 4 Leads |
| Size / Dimension | 1.654" L x 1.693" W (42.00mm x 43.00mm) | 1.654" L x 1.693" W (42.00mm x 43.00mm) |
| Height - Seated (Max) | 0.992" (25.20mm) | 0.992" (25.20mm) |
| Termination | PC Pins | PC Pins |
| Lead Spacing | 1.476" (37.50mm) | 1.476" (37.50mm) |
| Applications | Automotive; DC Link, DC Filtering | Automotive; DC Link, DC Filtering |
| Ratings | AEC-Q200 | AEC-Q200 |
| Features | - | Low ESL |
