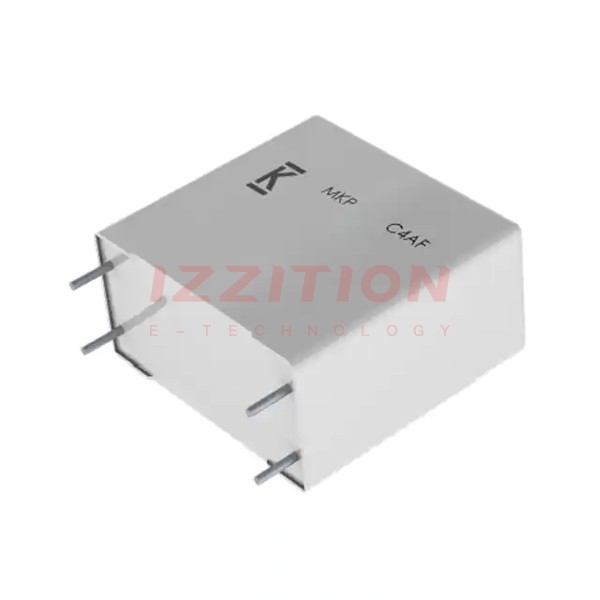

KEMET-C4AFBBW4330T3LK - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	3.3 µF
Tolerance:	±10%
Voltage Rating - AC:	600V
Voltage Rating - DC:	1200V (1.2kV)
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	3.5 mOhms
Operating Temperature:	-55°C ~ 105°C
Mounting Type:	Through Hole
Package / Case:	Radial - 4 Leads
Size / Dimension:	1.654" L x 1.181" W (42.00mm x 30.00mm)
Height - Seated (Max):	1.780" (45.20mm)
Termination:	PC Pins
Lead Spacing:	0.799" (20.30mm)
Applications:	Automotive
Ratings:	AEC-Q200
Features:	-

KEMET C4AFBBW4330T3LK
