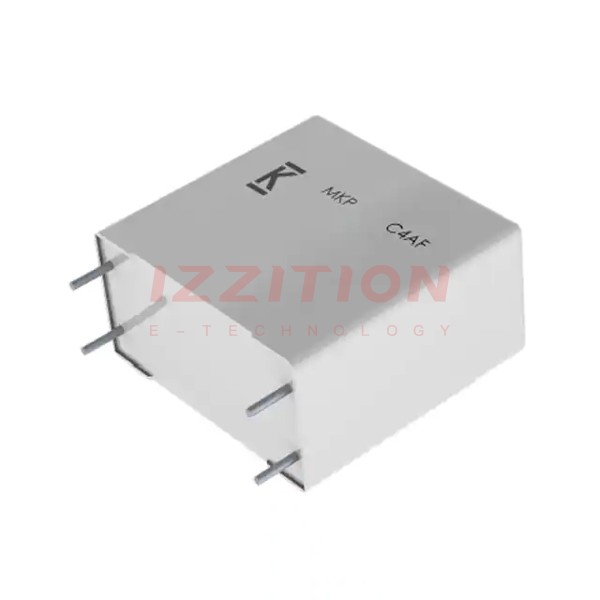

KEMET-C4AFBBW4220T3JK - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	2.2 µF
Tolerance:	±10%
Voltage Rating - AC:	600V
Voltage Rating - DC:	1200V (1.2kV)
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	4.9 mOhms
Operating Temperature:	-55°C ~ 105°C
Mounting Type:	Through Hole
Package / Case:	Radial - 4 Leads
Size / Dimension:	1.654" L x 1.102" W (42.00mm x 28.00mm)
Height - Seated (Max):	1.457" (37.00mm)
Termination:	PC Pins
Lead Spacing:	0.402" (10.20mm)
Applications:	Automotive
Ratings:	AEC-Q200
Features:	-

KEMET C4AFBBW4220T3JK
