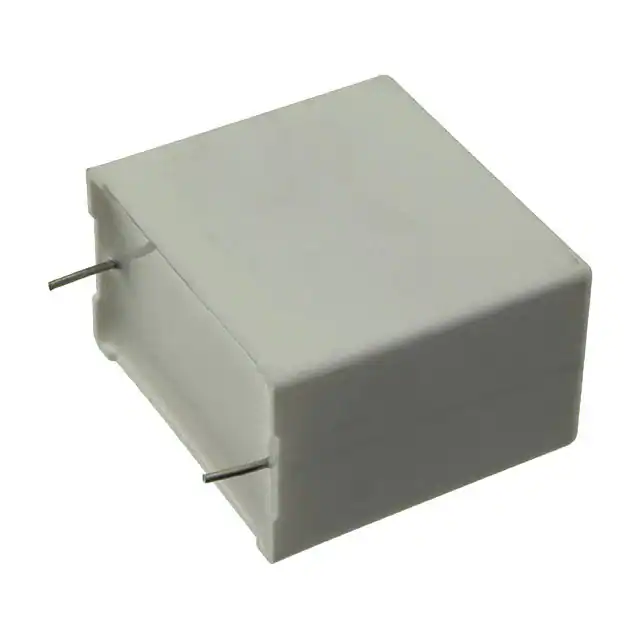

KEMET-C4AFABU4150T12K - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	1.5 µF
Tolerance:	±10%
Voltage Rating - AC:	500V
Voltage Rating - DC:	1000V (1kV)
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	7.2 mOhms
Operating Temperature:	-55°C ~ 105°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	1.240" L x 0.866" W (31.50mm x 22.00mm)
Height - Seated (Max):	1.465" (37.20mm)
Termination:	PC Pins
Lead Spacing:	1.083" (27.50mm)
Applications:	Automotive
Ratings:	AEC-Q200
Features:	-

KEMET C4AFABU4150T12K
